REAR LOADING CNC PANEL SAW
REAR LOADING CNC PANEL SAW
Rear Loading CNC Panel Saw engineered for high-intensity industrial manufacturing. By integrating a heavy-duty rear-loading system with advanced automation, this Rear Loading CNC Panel Saw offers a maximum cutting length of 3800mm, making it the ultimate solution for large-scale production. Whether you are processing panel furniture, building materials, or customized cabinetry, this high-performance Rear Loading CNC Panel Saw delivers maximum precision with minimal manual intervention, significantly boosting your factory’s productivity.”
Features
– High Performance Motors
– Up to 120m/min
– Flexible Cutting Adjustment
– Smooth Roller Conveyor

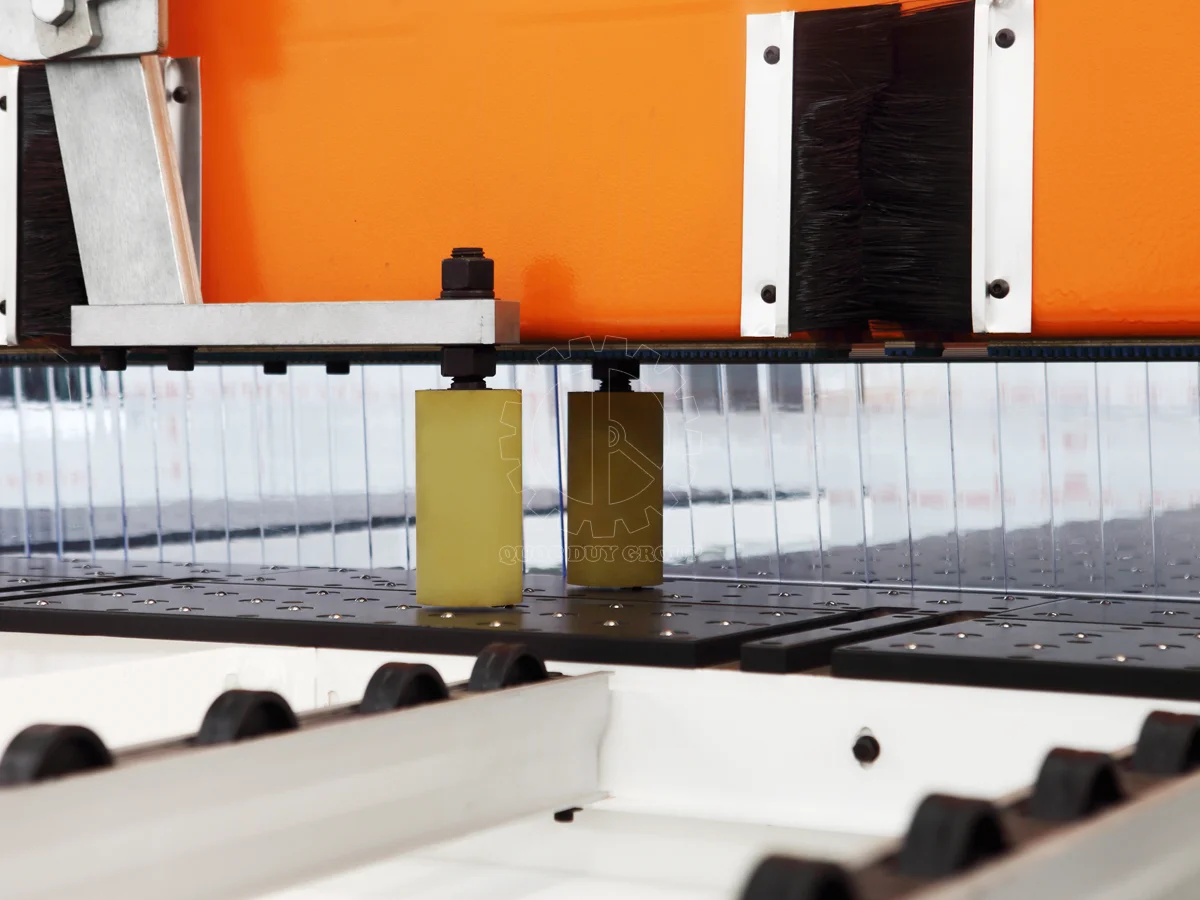

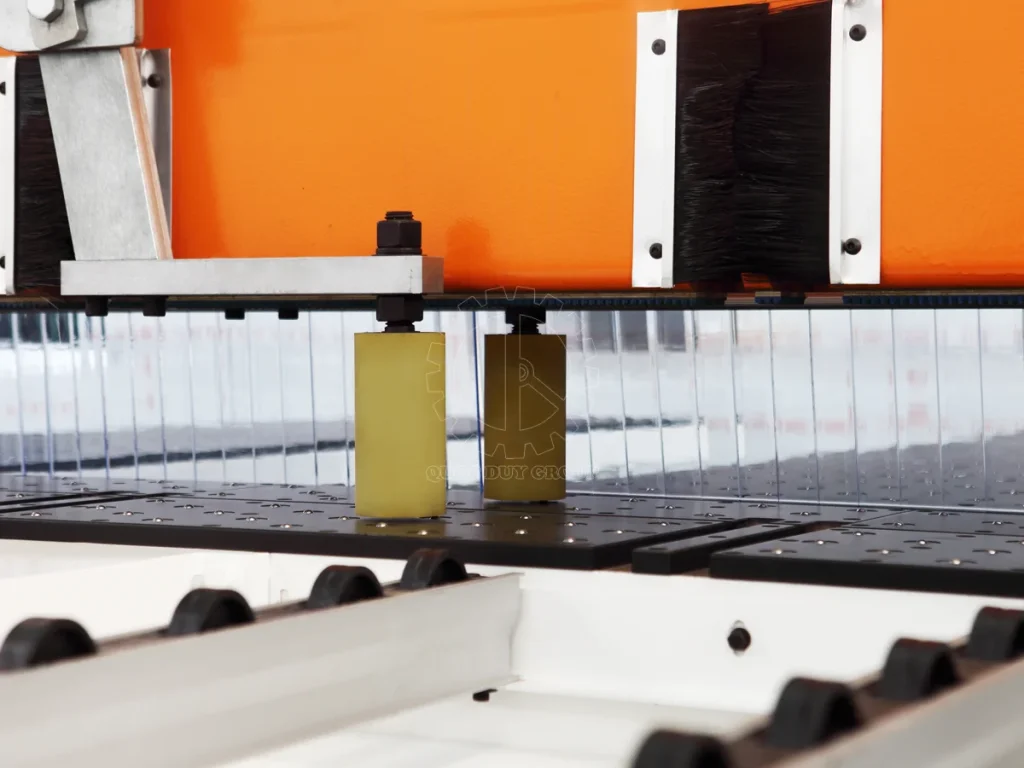

Automatic positioning of pressure beam
Automatically adjust the lifting height of the saw blade and pressure beam according to the thickness of the plate, eliminating the need for manual adjustment, ensuring the stability of the pressure beam and greatly improving equipment safety.

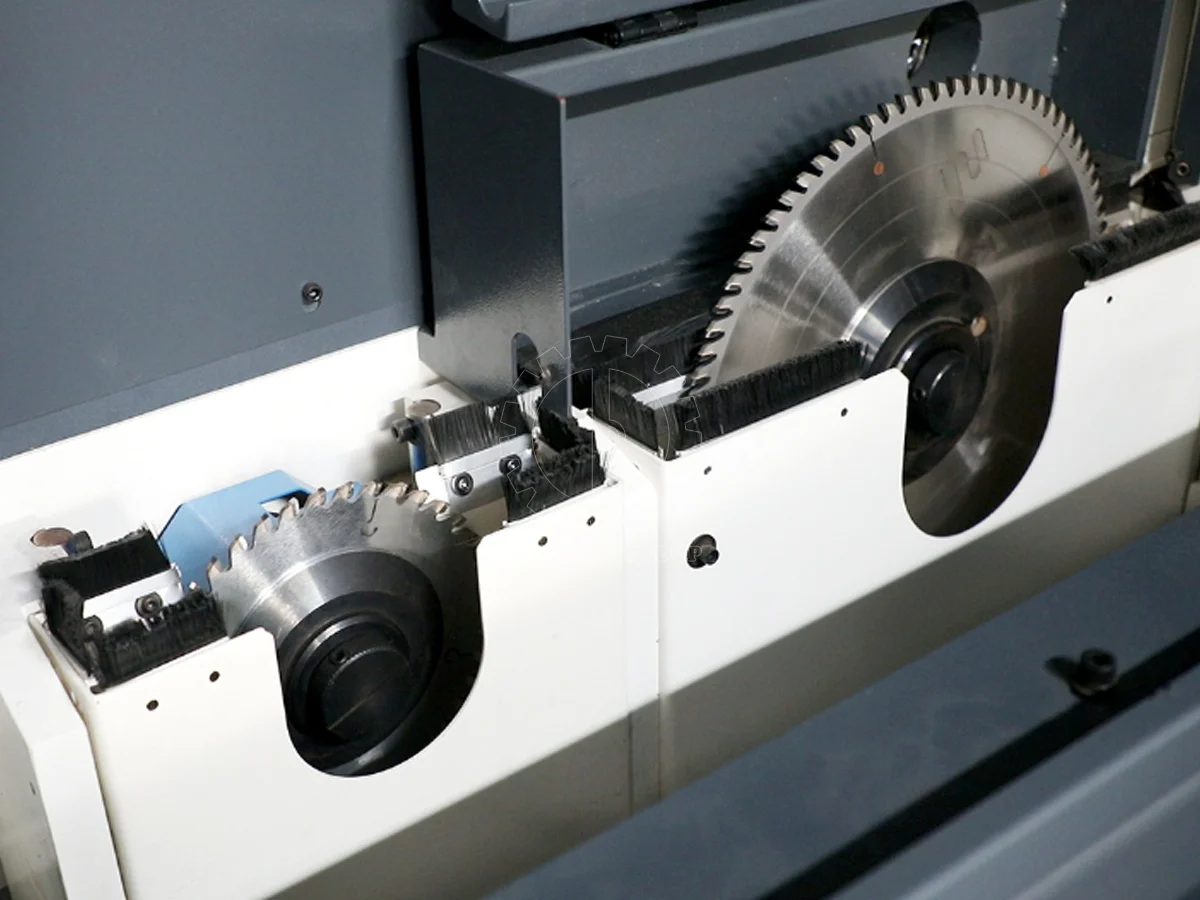

Large and small saws can be lifted independently
Automated saw stroke positioning based on board thickness reduces idle time, featuring a 120m/min rapid saw base speed.

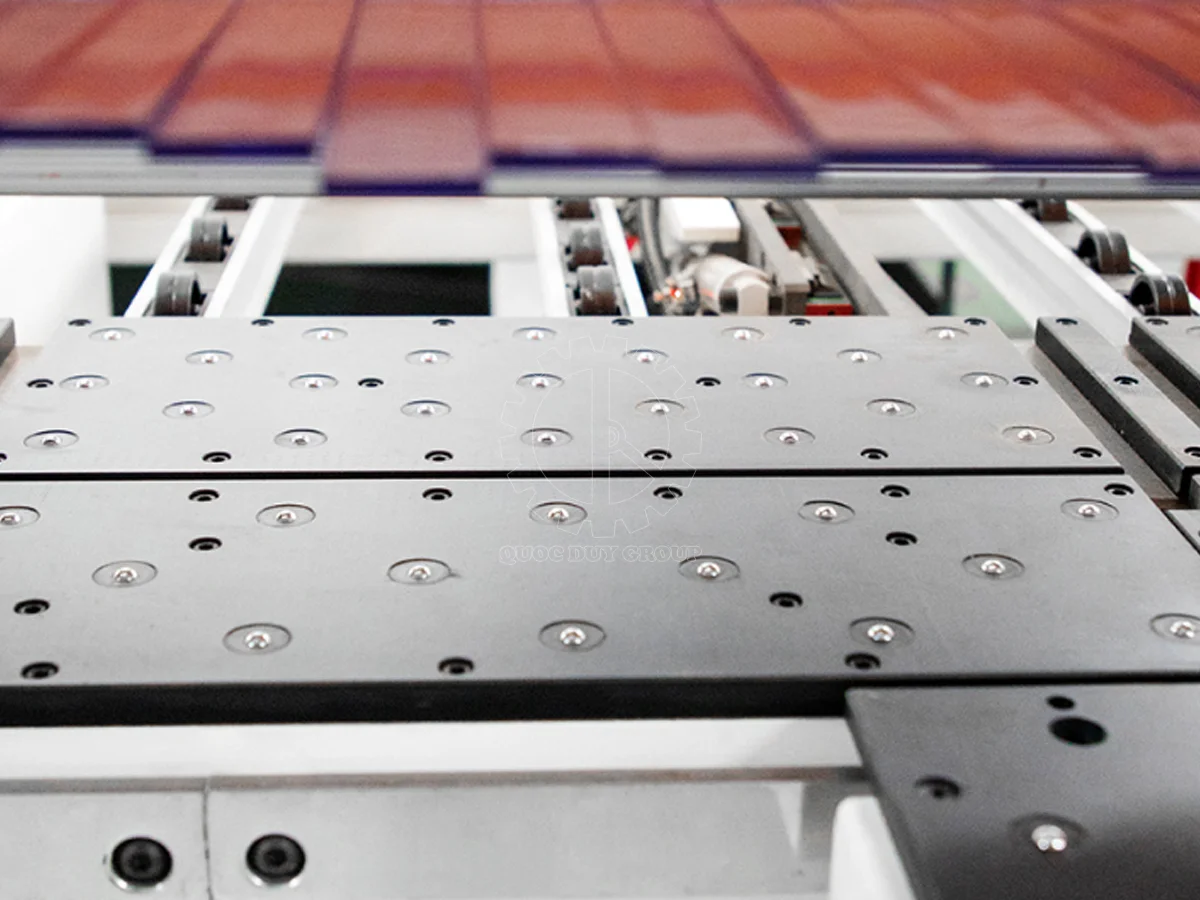

High-Precision Countertop Design
The streamlined table design effectively prevents edge chipping, while the 25mm reinforced surface ensures long-lasting durability without deformation. Additionally, the triple 1.8m3 air-floating tables, equipped with roller-assisted cutting, protect the workpiece surface from scratches.

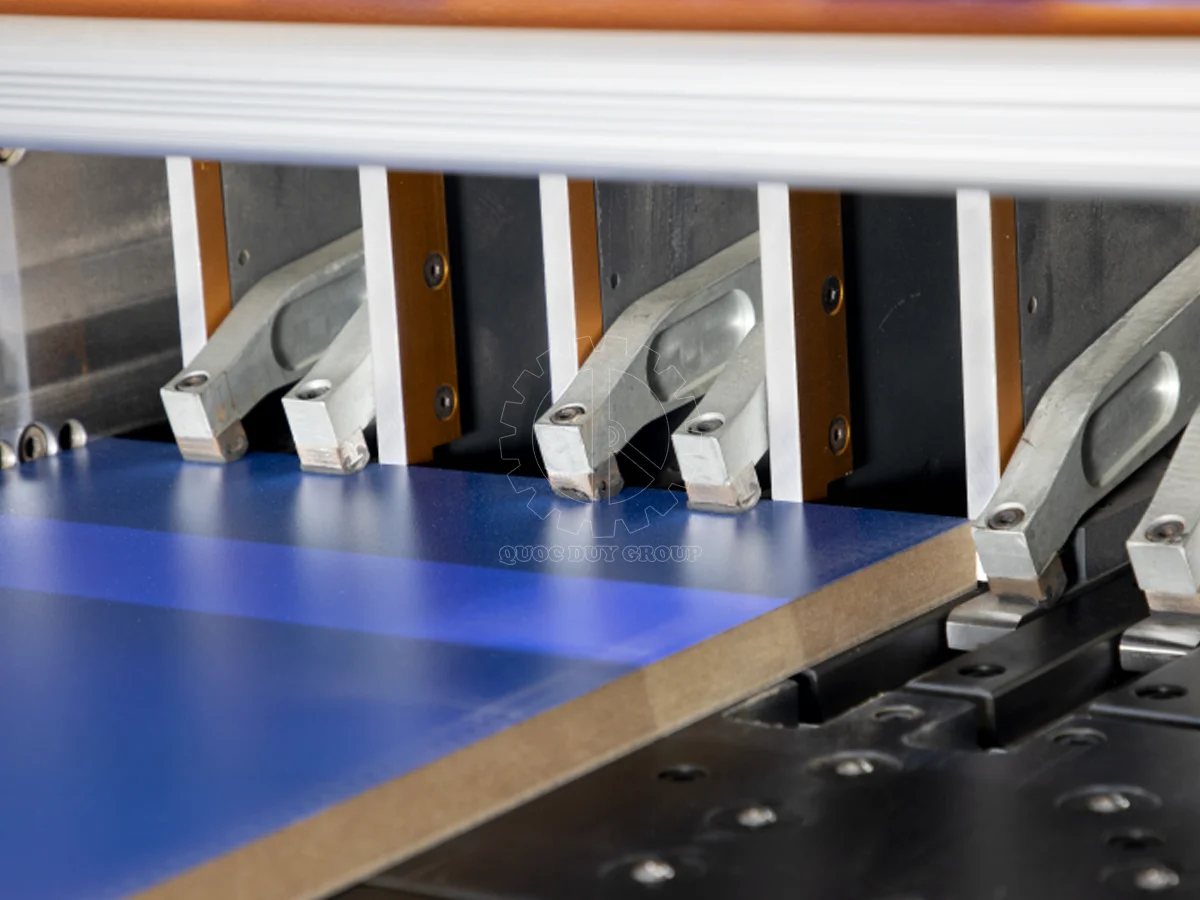

Rubber-Coated Double-Gripper Structure
The rubber-padded grippers ensure stable feeding and prevent surface scratches, even at high speeds of up to 85m/min. This design provides maximum protection for the workpiece.

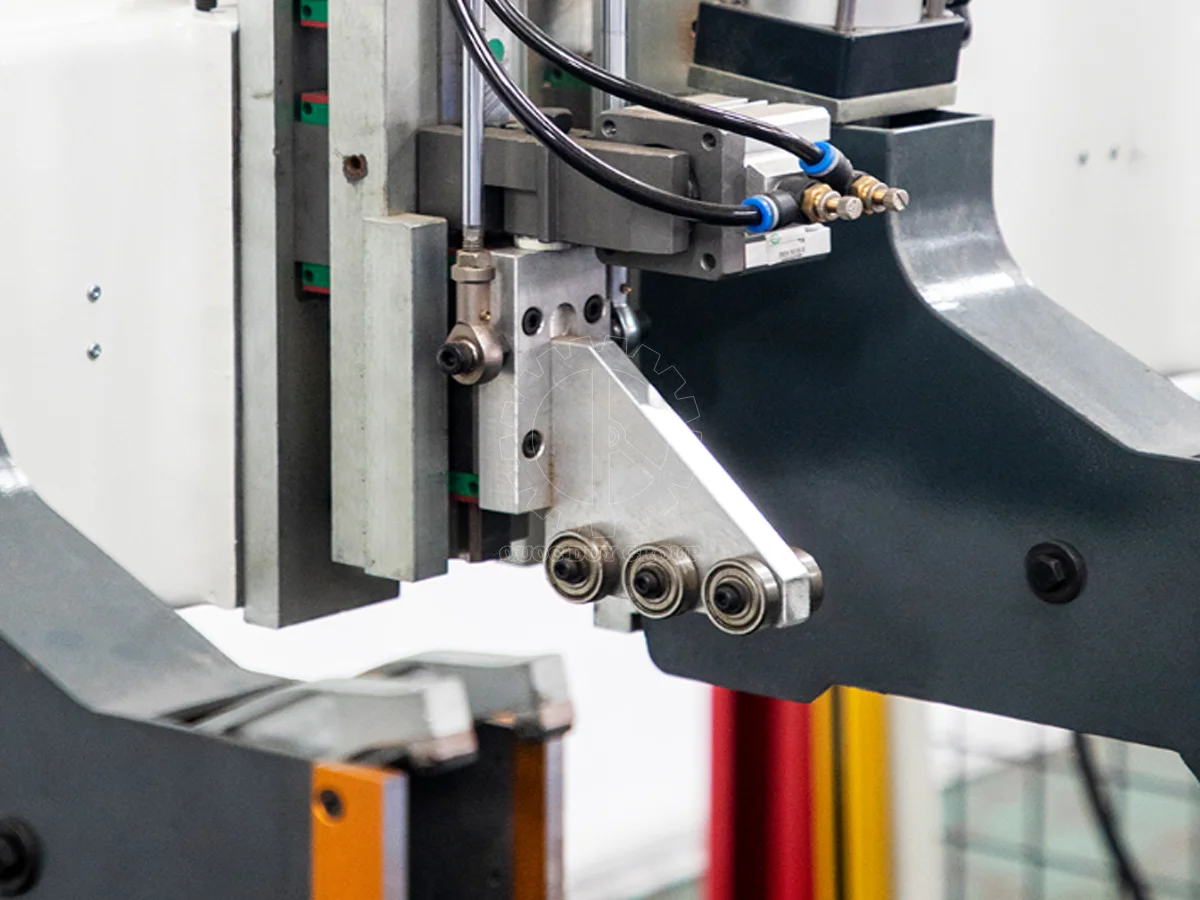

Magnetic Scale Positioning System
Featuring dual positioning scrapers and a magnetic scale, this system automatically adjusts to the programmed plate thickness. The integrated quick-clamping mechanism ensures rapid setup and high processing precision.
Smart System Optimization

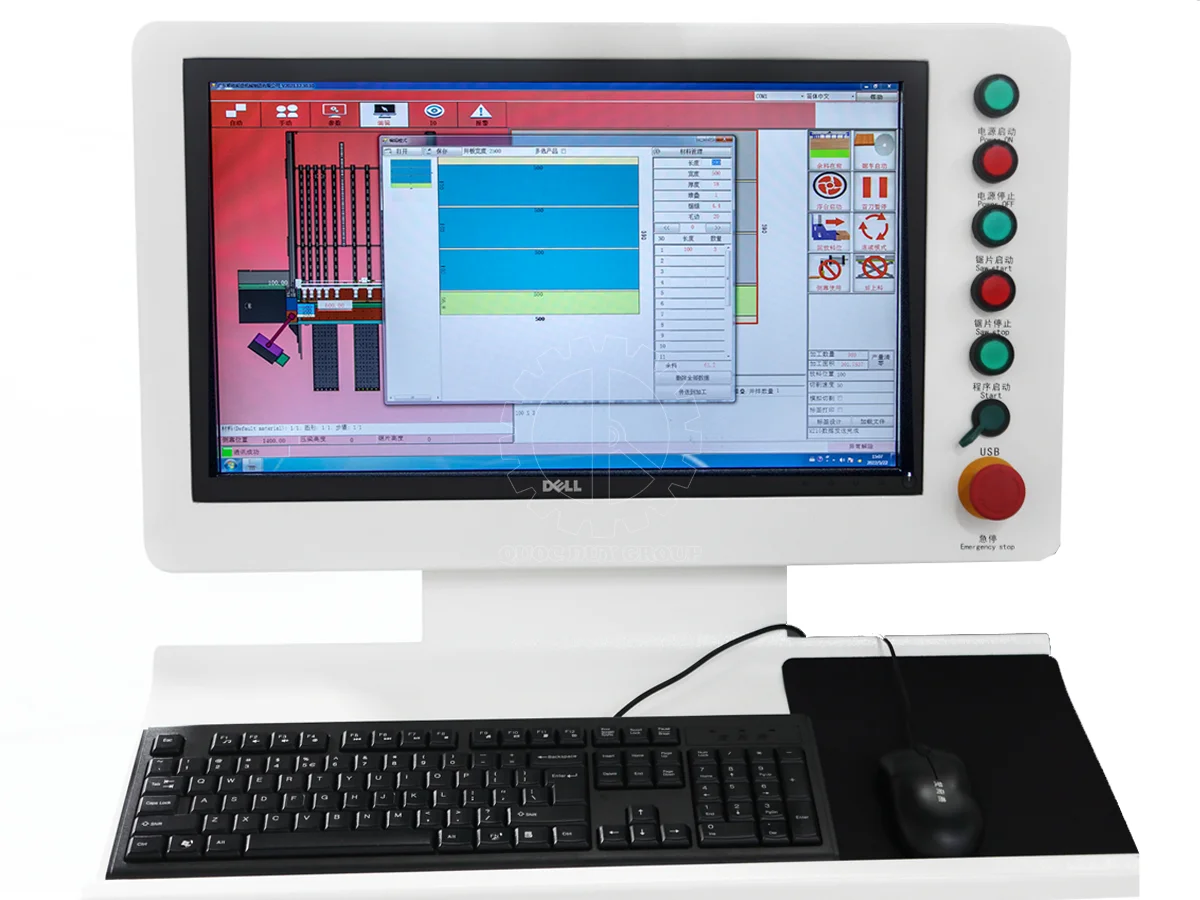

– 22-Inch Interface: Large, user-friendly display for easy operation.
– Seamless Integration: Fully compatible with major production and order disassembly software.
– PLC-Powered Nesting: Automated layout optimization to save materials and reduce environmental waste.

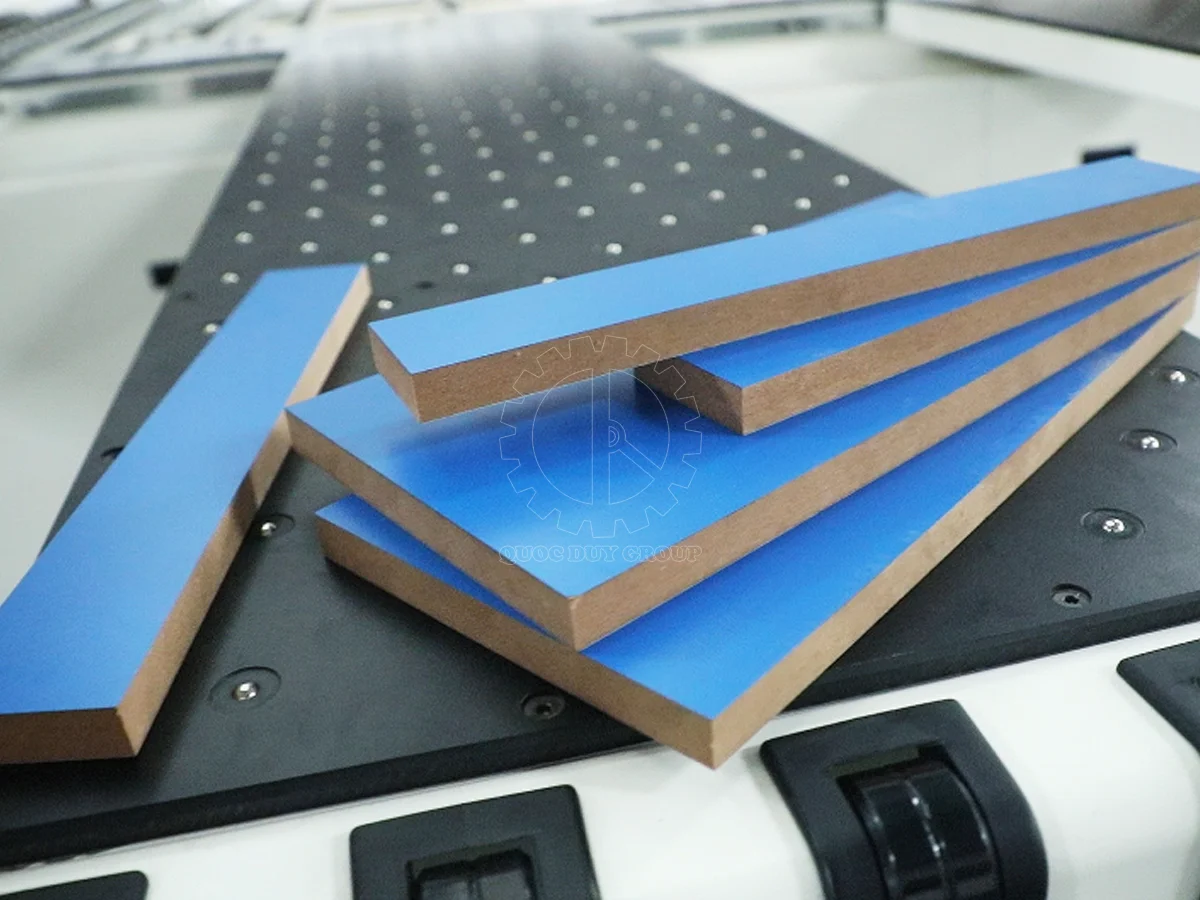

High-Speed Cutting & Multi-Industry Versatility
– High-Speed Performance: Optimized for rapid and precise cutting cycles.
– Broad Material Compatibility: Particle board, Plywood, Calcium Silicate, Aluminum, and Acrylic.
– Industry Applications: Panel furniture, Wood processing, Custom cabinets, and Construction.
Computer Beam Saw Rear Loading Solution 1
Rear lifting platform feeding – hydraulic lifting platform
Hydraulic Rear-Lift Feeding: Automates heavy panel loading with precision.
Efficiency: Minimizes manual labor and shortens production cycles.
Value: A cost-effective entry point for automated large-scale manufacturing.
Computer Beam Saw Rear Loading Solution 2
Precision Screw-Drive Loading
High-Precision Lifting: Equipped with Ø36mm trapezoidal screws (6mm lead).
Synchronized Drive: Four-screw mechanism powered by a centralized chain transmission for balanced movement.
Advanced Stability: A reliable alternative to conventional hydraulic lifting systems.
Video
Specifications
| Model | SM HH380CL |
| Max. cutting length | 3800mm |
| Max. cutting thickness | 120mm |
| Main saw blade diameter | 380mm (450mm optional) |
| Main saw shaft diameter | 75mm |
| Main saw shaft rotation speed | 4000rpm |
| Scoring saw blade diameter | 200mm |
| Scoring saw shaft diameter | 50mm |
| Main saw shaft rotation speed | 5200rpm |
| Saw carriage forward speed | 100m/min |
| Saw carriage backward speed | 120m/min |
| Main saw motor | 18.5kw |
| Scoring saw motor | 2.2kw |
| Saw carriage drive motor | 2kw (AC servo motor) |
| Automatic feeding motor | 2kw (AC servo motor) |
| High-pressure blower motor | 3kw+2.2kw |
| Side aligner motor | 0.25kw |
| Lifting platform motor | 2kw |
| Total power | 32.15kw |
| Automatic feeding speed | 85m/min |
| Air pressure | 5~7kg/cm2 |
| Worktable height | 980mm |
| Machine size | 6612*8321*2066mm |
| Air floating table quantity | 4 |
Product Images
