CNC MULTI-SPINDLE SLOT MILLING MACHINE

SDC 2400 4 4 / SDC 2400 5 5

This CNC multi-spindle machine excels at high-speed slot milling on straight and curved wood. Featuring 4–5 spindles for simultaneous processing and an advanced CNC controller, it delivers maximum flexibility and operational ease.

CNC MULTI-SPINDLE SLOT MILLING MACHINE

Name: CNC MULTI-SPINDLE SLOT MILLING MACHINE - Quoc Duy
SKU: SDC 2400 4 4 / SDC 2400 5 5

The CNC multi-spindle slot milling machine excels at high-speed milling for straight and curved wood components. With a 4 or 5-spindle configuration, the machine can process multiple pieces simultaneously. Its advanced CNC control system streamlines operations, offering enhanced flexibility and ease of use.

Features

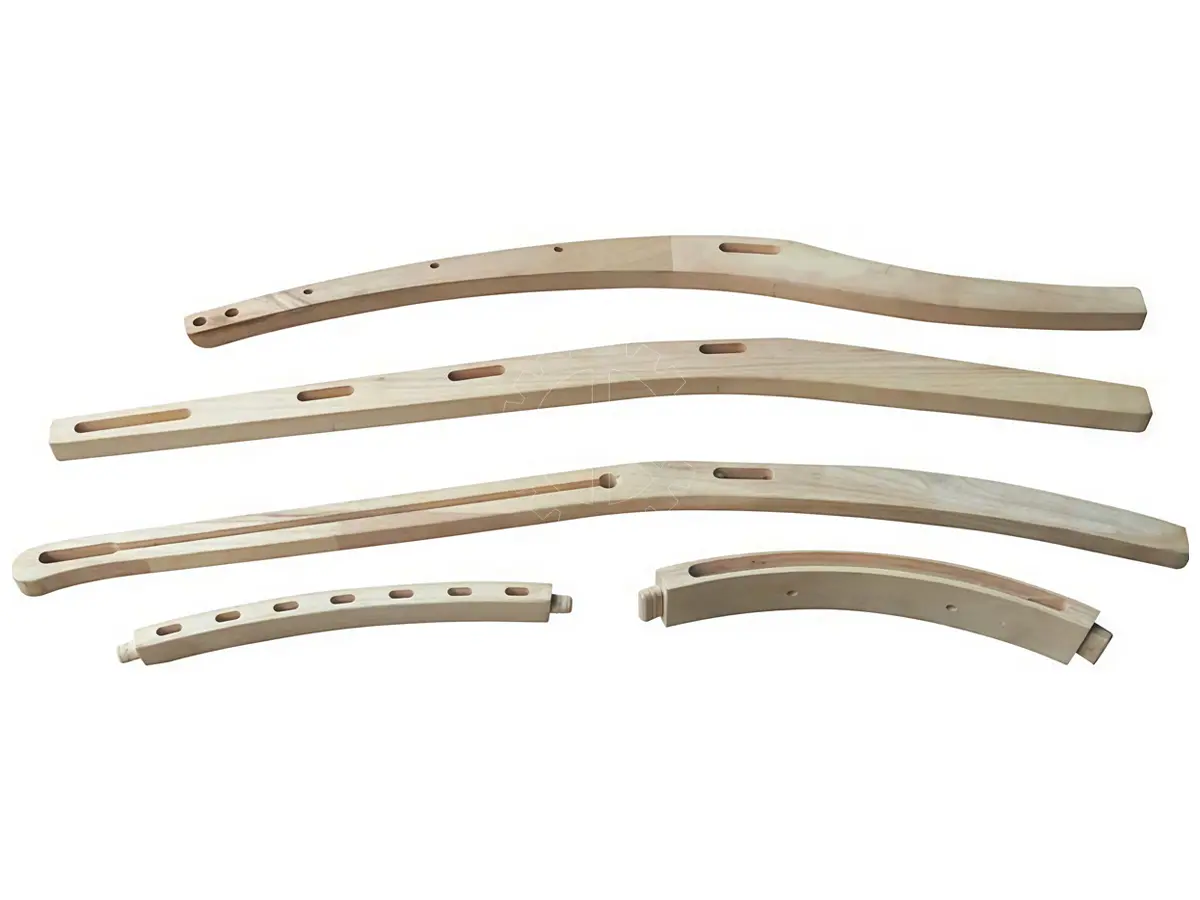

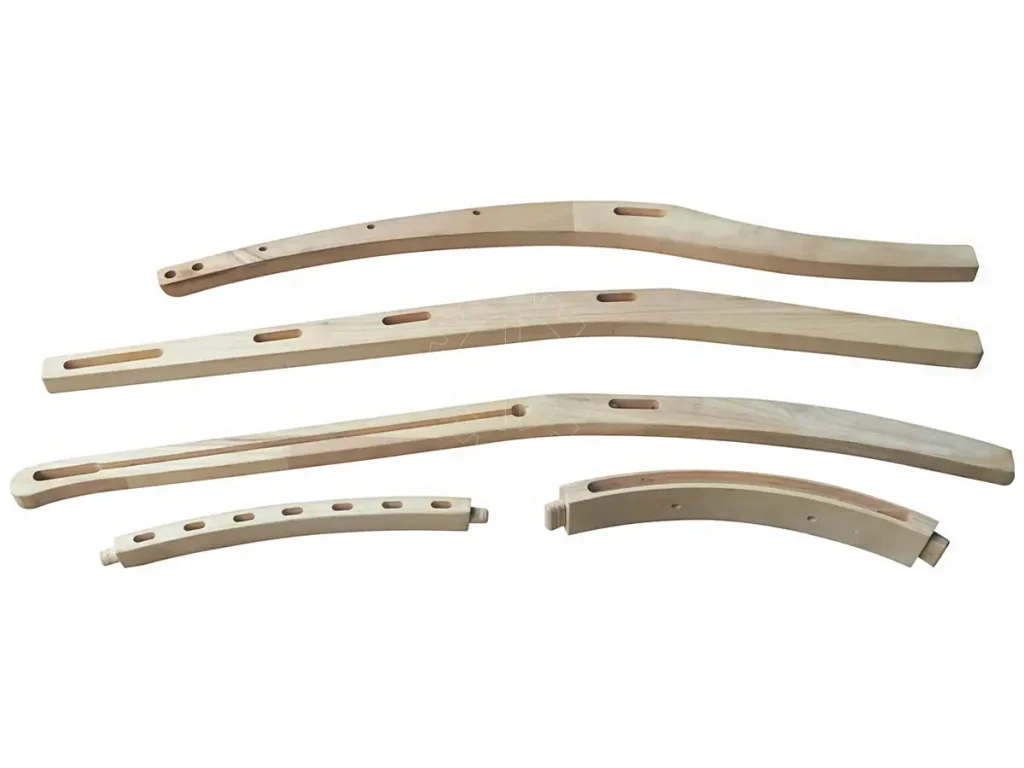

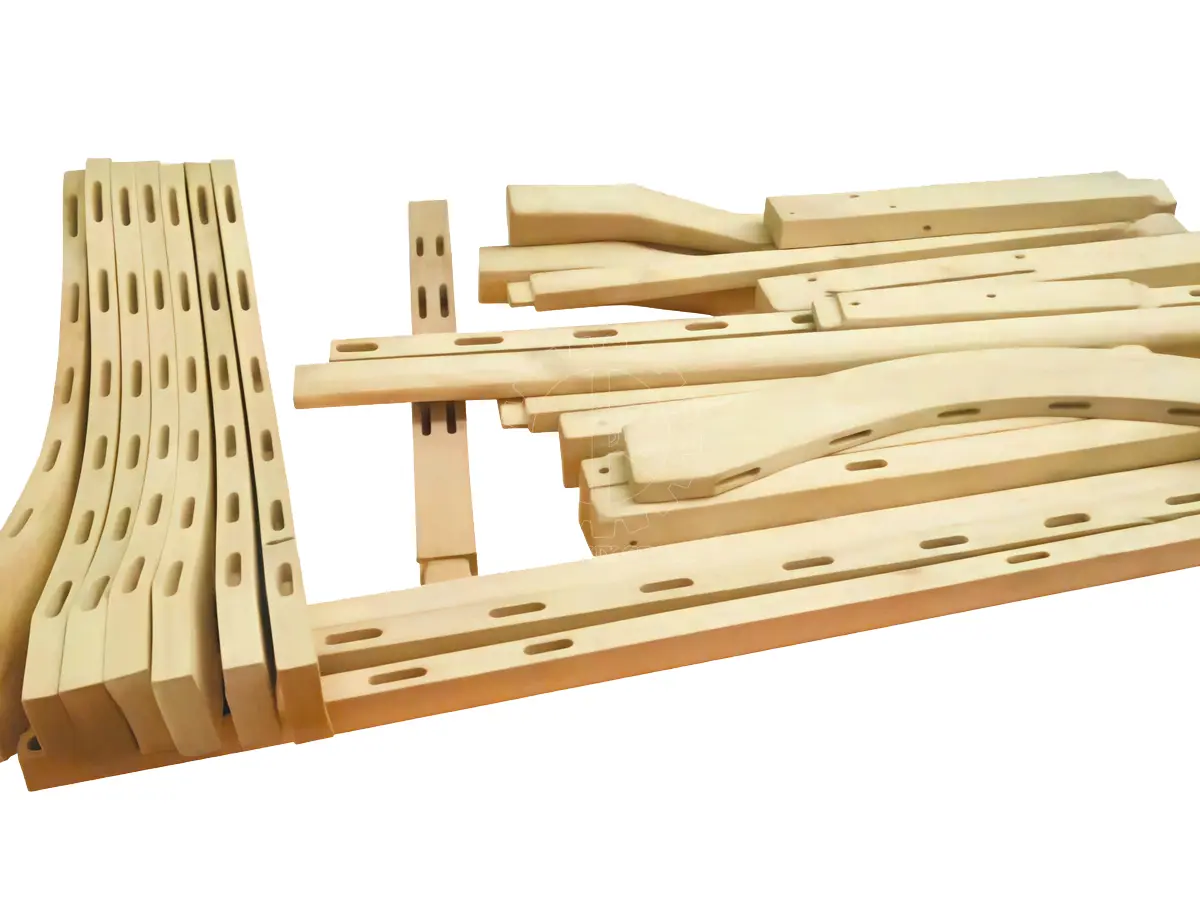

– High-Speed Versatility: Specialized for straight/curved wood (frames, legs, furniture…).

– Multi-Spindle Efficiency: 4/5 spindles with independent inverter control for maximum throughput.

– Precision Engineering: Servo-driven X, Y, Z axes with high-accuracy ball screws & linear guides.

– Smart Control: Advanced CNC system for flexible, easy, and high-output operations.

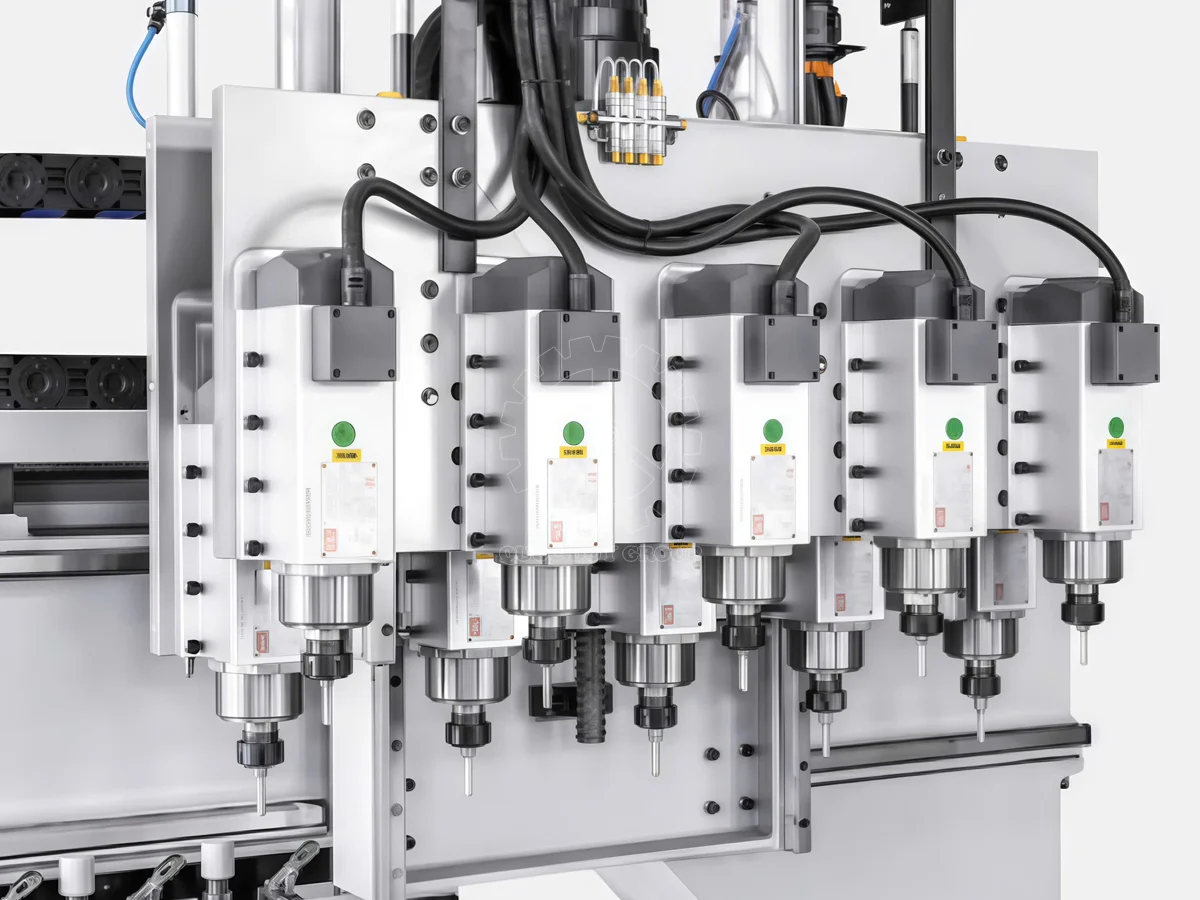

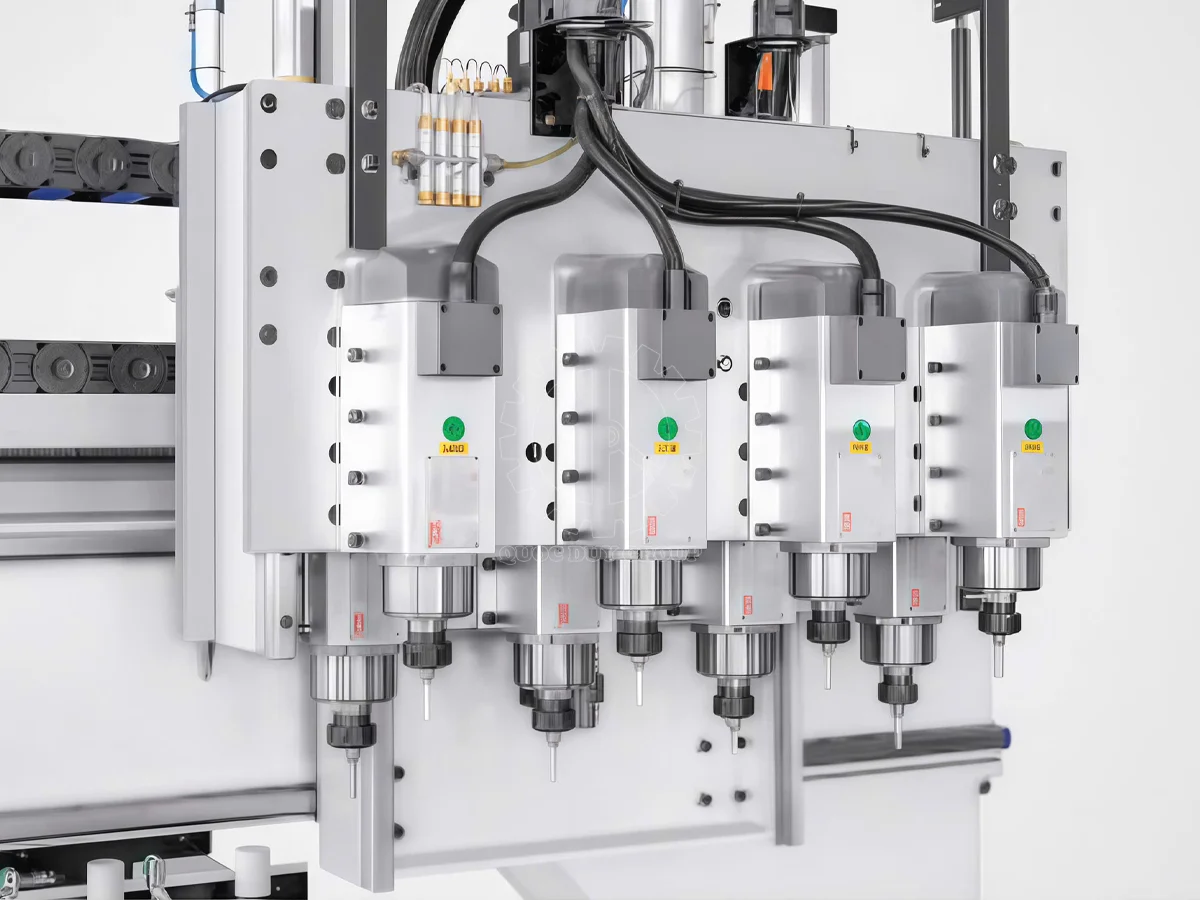

Spindle Head

SDC 2400-4-4 |Four-Head CNC Slot Milling Solution

Engineered for versatility, utilizes an automatic head system to process varying slot widths in a single cycle. By eliminating redundant clamping, it shortens production times and significantly boosts total throughput.

SDC 2400-5-5 | Five-Head CNC CNC Slot Milling Solution

Engineered for versatility, this system handles multiple slot widths in a single cycle via an automatic head-changer. It eliminates redundant clamping, drastically shortening production times and maximizing throughput.

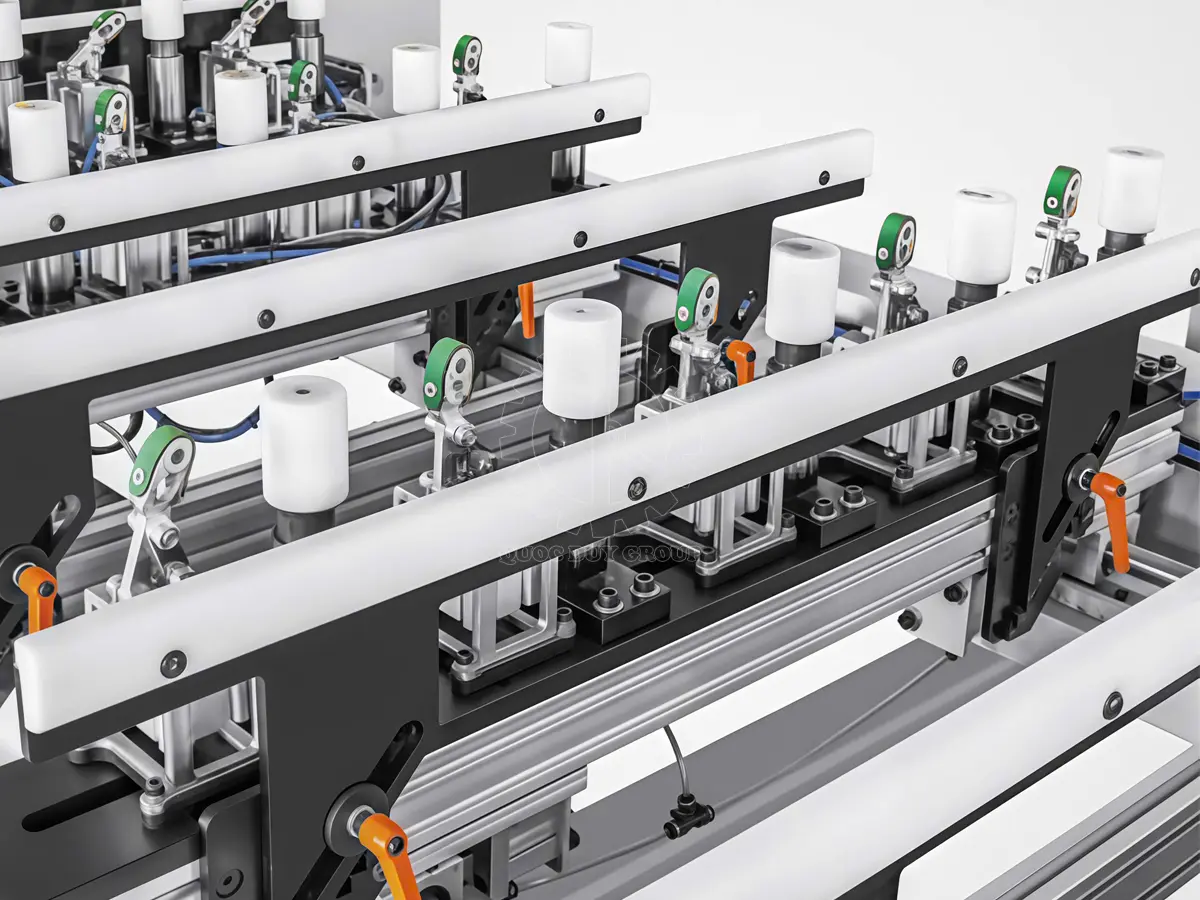

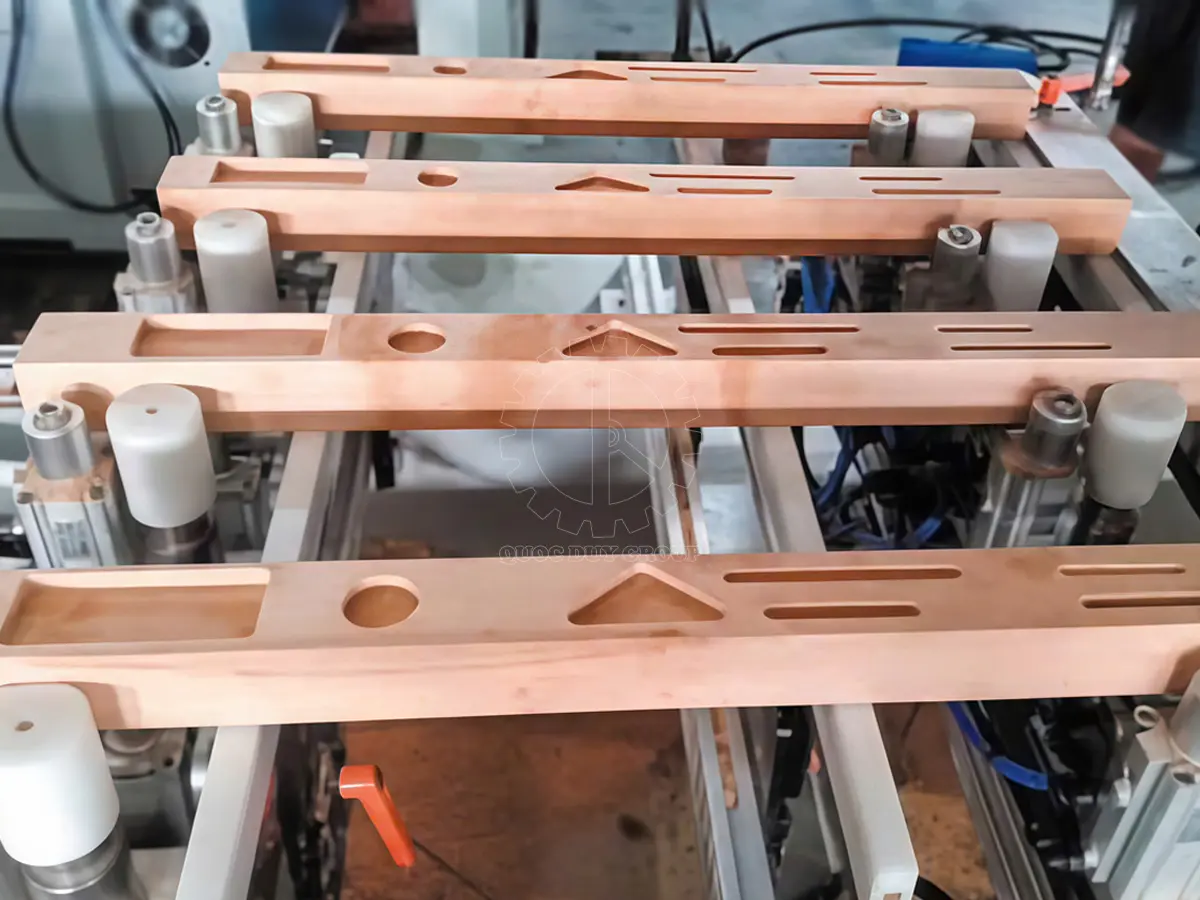

Clamping System

SDC 2400 4 4 | High-Efficiency Clamping System

4 Pneumatic Clamps: Maximum stability for high-speed milling.
A/B Dual Zones: Load and machine simultaneously.
Oversized Ready: Synchronized system for large-scale workpieces.
Fast Fixation: Rapid-action pneumatic setup.

SDC 2400 5 5 | High-Efficiency Clamping System

5 Pneumatic Clamps: Maximum stability for high-speed milling.
A/B Dual Zones: Load and machine simultaneously.
Oversized Ready: Synchronized system for large-scale workpieces.
Fast Fixation: Rapid-action pneumatic setup.

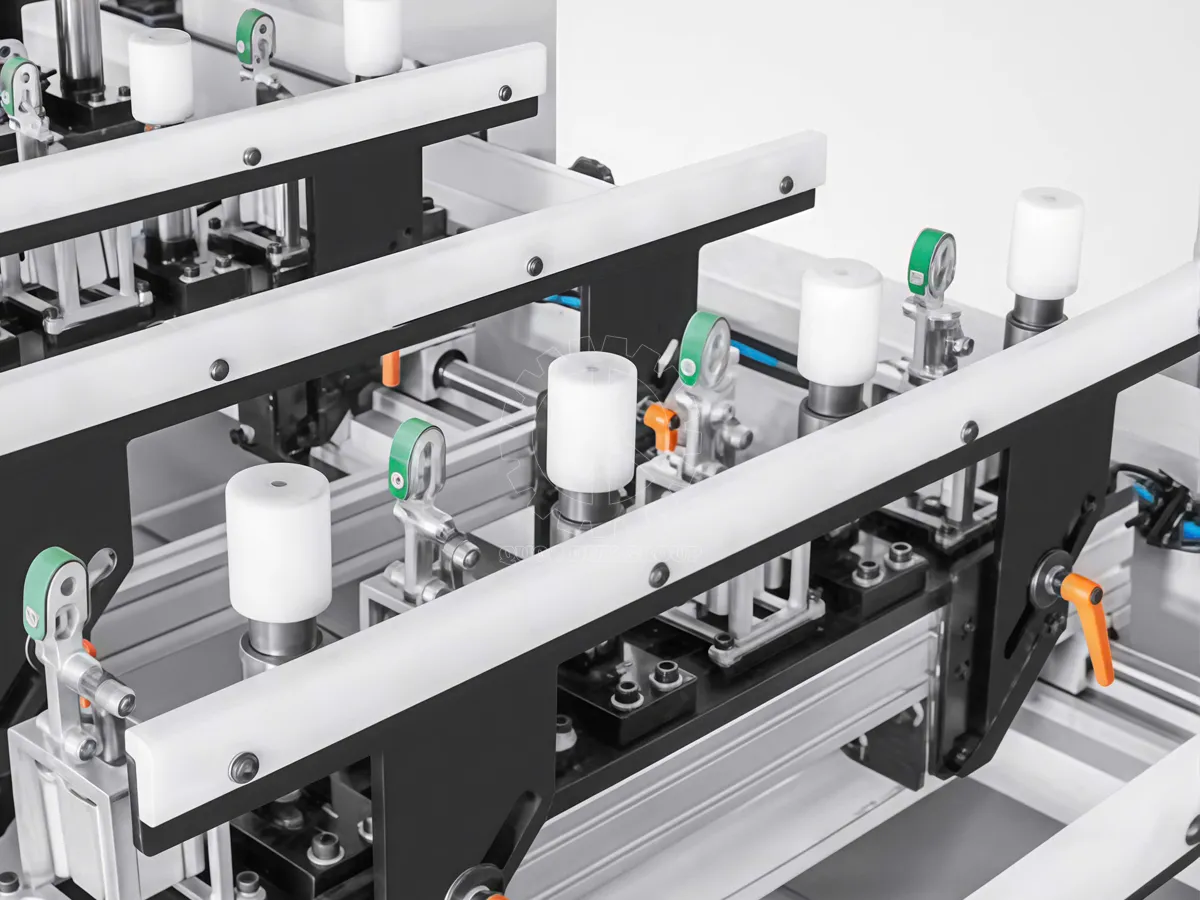

Intelligent Clamping System

Featuring a one-handed adjustment mechanism, the clamp can be easily repositioned by engaging the red release button.

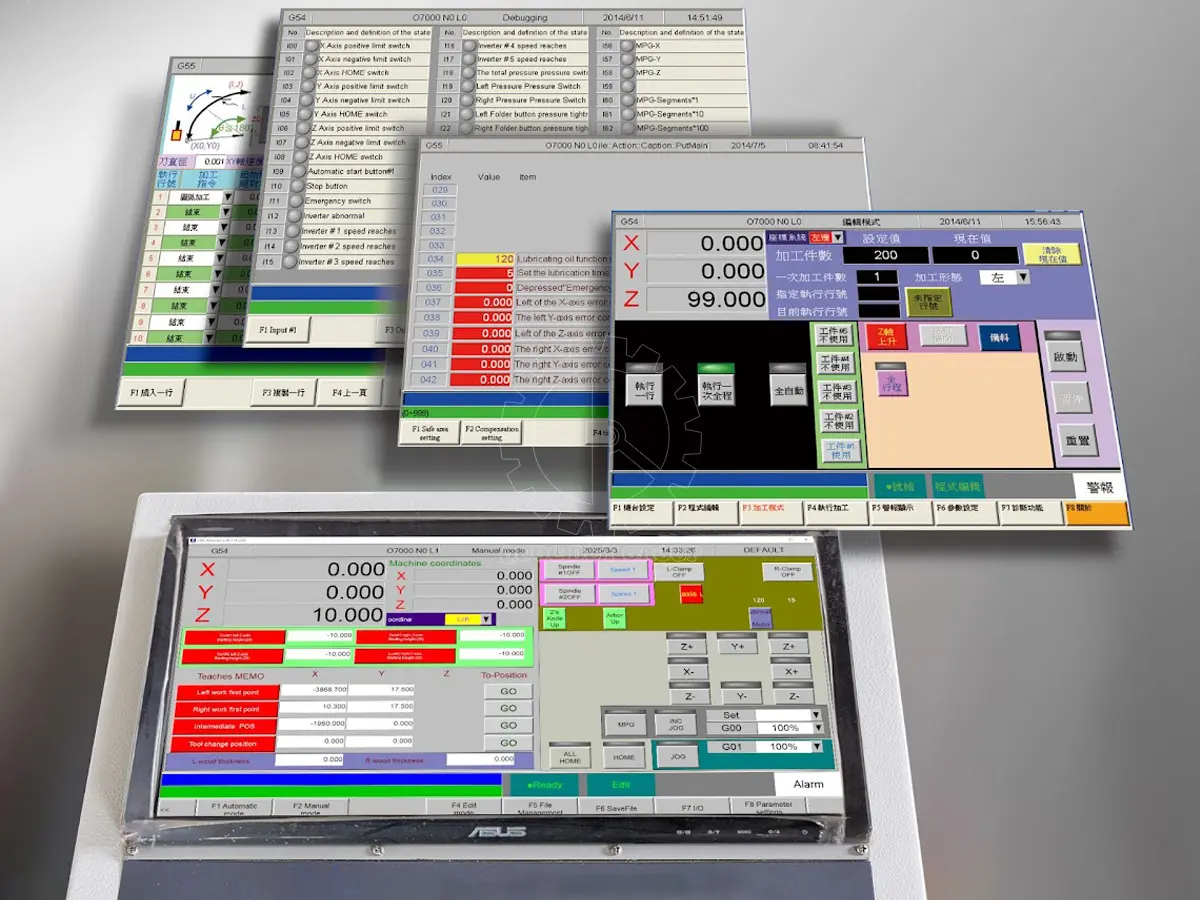

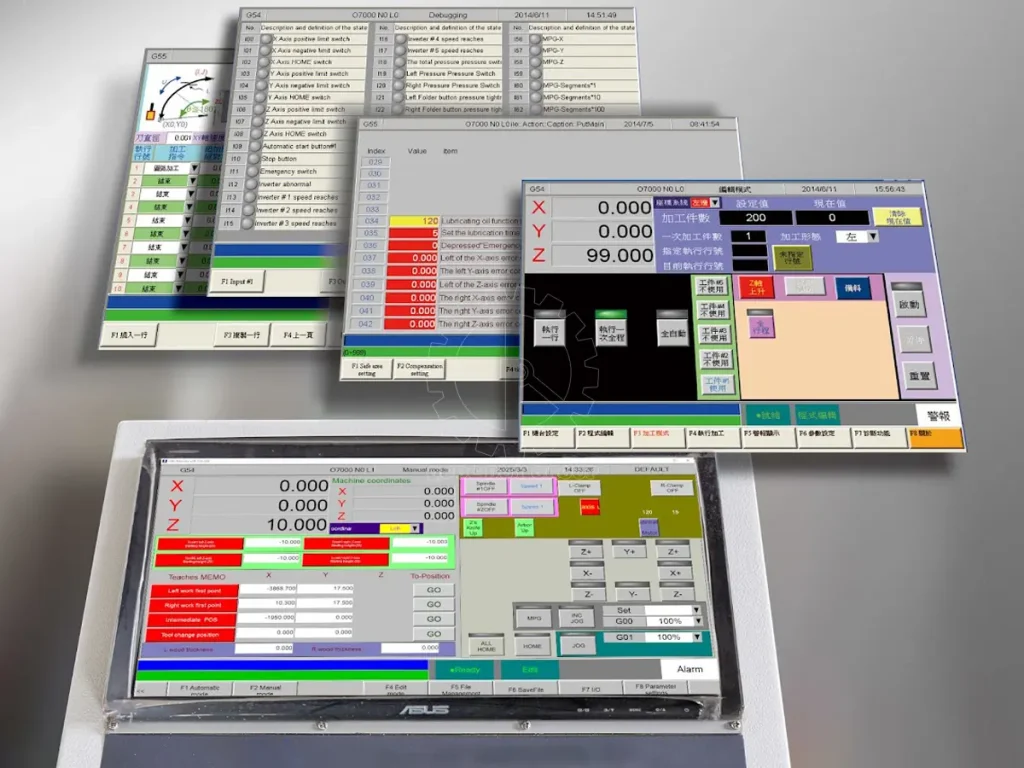

Advanced CNC Control System

Our powerful, user-friendly CNC controller is engineered for maximum operational efficiency and ease of use.

– High-Resolution Interface: provides a clear, intuitive, and highly responsive user experience.

– Simplified Setup: A parameter-based interface with mouse support allows for rapid setup—no advanced computer expertise required.

– Massive Storage: Supports extensive memory capacity for various production modules and complex recipes.

– Bilingual Support: Seamlessly switch between Chinese and English displays for global accessibility.

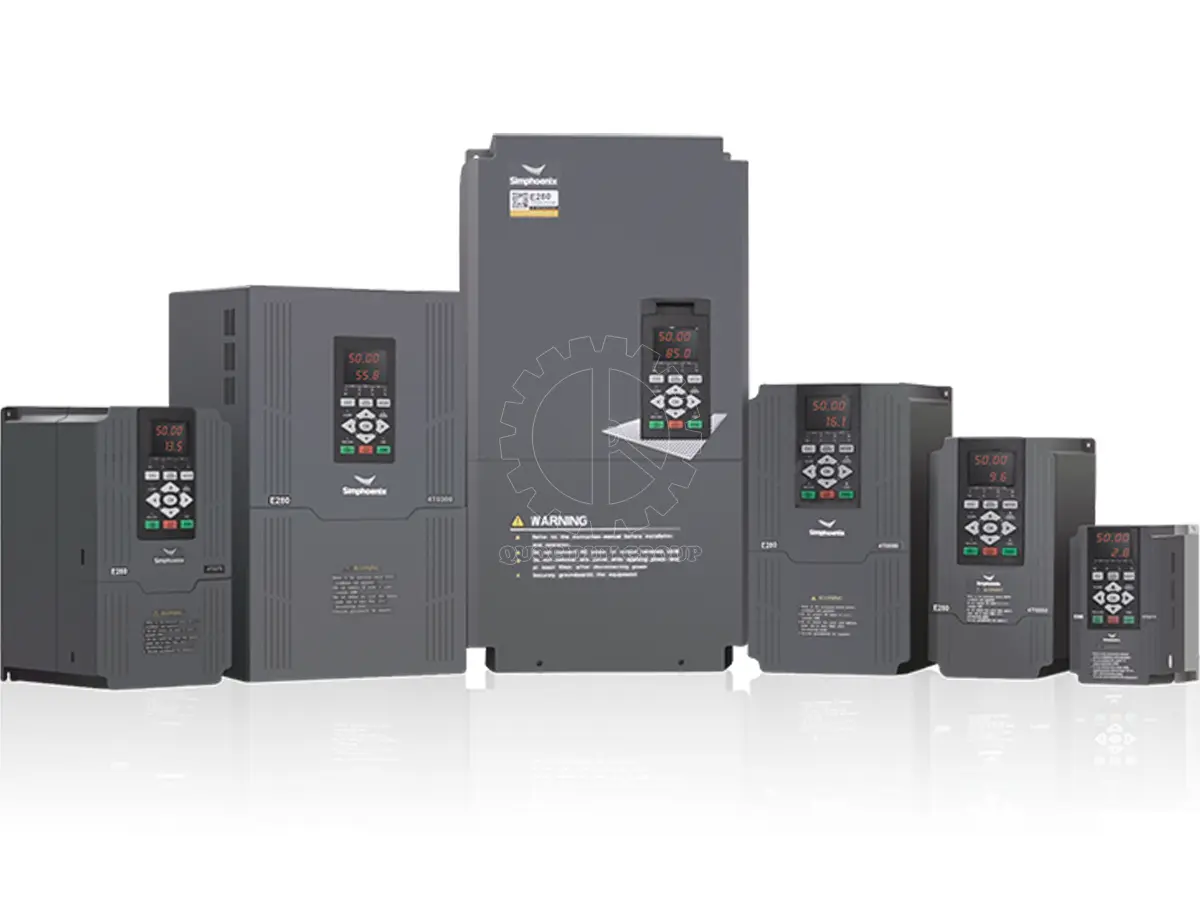

Simphoenix Inverter

– Superior Torque: High start torque (200% at 0Hz) for powerful, stable operation.

– Smart Monitoring: Real-time tracking of 100+ parameters via dual-line LED/LCD.

– Easy Macro Setup: Built-in system macros for rapid parameter configuration.

– Precision Control: 16-segment programmable speeds with independent settings.

– Total Protection: Comprehensive warning and safety diagnostic functions.

Video

Specifications

Processing size range	SM 612H	SM 612M	SM 612S
Min. Width of work-piece	50 mm	50 mm	50mm
Max. Width of work-piece	1200 mm	1200 mm	1200mm
Max. Length of work-piece	2700 mm	2700 mm	250mm
Min. Length of work-piece	200 mm	200 mm	200mm
Max. Thickness of work-piece	48 mm	48 mm	48 mm
Min. Thickness of work-piece	12 mm	10 mm	10 mm
Working Stoke & Max. Position speed
X axis	5000 mm – 130 m/min	5410 mm – 130 m/min	4610mm, 130m/min
Y axis	1680 mm – 80 m/min	1700 mm – 80 m/min	1660mm, 85m/min
Z axis	90 mm – 30 m/min	140 mm – 30 m/min	130mm, 30m/min
U axis	5000 mm – 130 m/min	5410 mm – 130 m/min	4610mm, 130m/min
V axis	1200 mm – 80 m/min	1395 mm – 80 m/min	1360mm, 80m/min
W axis	100mm – 30 m/min	110 mm – 30 m/min	110mm, 30m/min
A axis	1260mm – 30 m/min	1235 mm – 30 m/min	1210mm, 30m/min
Drilling unit
Vertical spindles	12 ( X axis) + 9 ( Y axis)	9	9 pcs
Horizontal	8	4 (X axis) + 4 (Y axis)	4 (X axis) + 4 (Y axis)
Drilling box motor speed	3400 rpm	2800 rpm	2800 rpm
Drilling motor power	2.2 kw	2.2 Kw	2.2kW
Milling unit
Milling motor power	3.5 kw x 2	3.5 Kw	3.5 Kw
Spindle speed	18000 rmp	18000 rpm	18000 rpm
Other data
Working table height	960 mm	960 mm	850mm
Total power	19.2 kw	20.8 kw	18.02kW
Voltage	380V/50Hz	380V/50Hz	380V
Air pressure	0.7-0.8Mpa	0.7 – 0.8 Mpa	0.7 – 0.8MPa
Netweight	3500kg	2600 kg	2440kg
Machine	5800x2840x2200mm	5800 x 2840 x 2200 mm	5470 x 2625 x 2200mm
