6 SIDEDS CNC DRILLING MACHINE

SM 612 H/SM 612 M/ SM 612 N

The CK-1325-WSP is a standard CNC wood router of the Spire Series. It inherits the excellent DNA of the Spire range, is fitted with renowned components including Yaskawa servo motors, HSD spindles and Schneider electric parts, and comes with the exclusive VIP services of the Spire Series.

6 SIDEDS CNC DRILLING MACHINE

Six Sides CNC Drilling Machine for wood is a high-end CNC equipment for drilling and grooving plate furniture production. Six-sided CNC drilling can complete six-sided processing, grooving and milling simultaneously. Easy to operate, flexible to use, and free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a specific range.

Precise Wood Drilling Solution

Cost-Effective Solution

Efficient and Precise Wood Drilling

Simple Computer Control

Free of Manual Operation

Applications

6 sides drilling, grooving, meet all kinds of furniture production needs.

Precision Drilling Heads

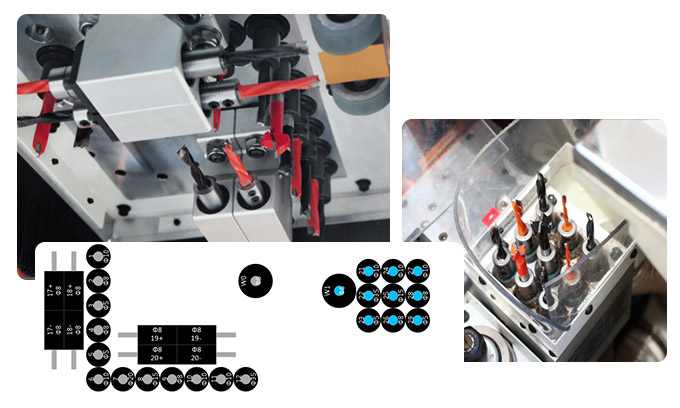

SM 612H Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.

– One time processing can complete panel 6-side drilling & 2-side grooving works.

– Drilling bits:

Top: Vertical 12pcs + Horizontal 8pcs
Bottom: Vertical 9pcs

– Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)

SM 612 M/N Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.

One time processing can complete panel 6-side drilling & 2-side grooving works.

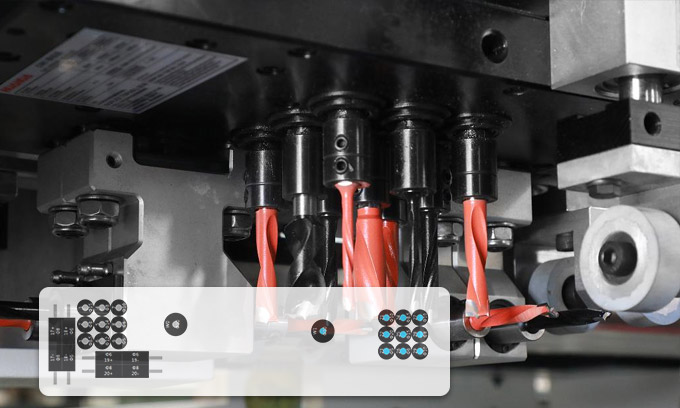

Drilling bits:

Top: Vertical 9pcs + Horizontal 8pcs
Bottom: Vertical 9pcs

Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)

Double clamps

Double clamps continuously feeding, automatically control the panel feeding and positioning according to the computer drilling program

Min. process size: 250x50mm.

Meet different panel sizes processing demands.

Industrial PC + 21-inch Color Screen

Using Industrial PC + 21-inch color screen to control the display.
Machine can connect internet or wifi, more easier for transfer processing data and remote control service

Scan QR Code Loading Processing Files

Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.

Optional

optional side slot, HHM software, flexible discharge or automatic loading and unloading rollers, saw slotting saw balde etc., for more details please contact with our sales.

Hassle-Free Tool Setting, Achieving a Leap in CNC Router Machining Efficiency and Precision!

Taiwan Syntec Servo Motor

1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling

Taiwan Syntec control system + Taiwan Syntec servo motor

1. Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.

Video

Specifications

Processing size range	SM 612H	SM 612M	SM 612S
Min. Width of work-piece	50 mm	50 mm	50mm
Max. Width of work-piece	1200 mm	1200 mm	1200mm
Max. Length of work-piece	2700 mm	2700 mm	250mm
Min. Length of work-piece	200 mm	200 mm	200mm
Max. Thickness of work-piece	48 mm	48 mm	48 mm
Min. Thickness of work-piece	12 mm	10 mm	10 mm
Working Stoke & Max. Position speed
X axis	5000 mm – 130 m/min	5410 mm – 130 m/min	4610mm, 130m/min
Y axis	1680 mm – 80 m/min	1700 mm – 80 m/min	1660mm, 85m/min
Z axis	90 mm – 30 m/min	140 mm – 30 m/min	130mm, 30m/min
U axis	5000 mm – 130 m/min	5410 mm – 130 m/min	4610mm, 130m/min
V axis	1200 mm – 80 m/min	1395 mm – 80 m/min	1360mm, 80m/min
W axis	100mm – 30 m/min	110 mm – 30 m/min	110mm, 30m/min
A axis	1260mm – 30 m/min	1235 mm – 30 m/min	1210mm, 30m/min
Drilling unit
Vertical spindles	12 ( X axis) + 9 ( Y axis)	9	9 pcs
Horizontal	8	4 (X axis) + 4 (Y axis)	4 (X axis) + 4 (Y axis)
Drilling box motor speed	3400 rpm	2800 rpm	2800 rpm
Drilling motor power	2.2 kw	2.2 Kw	2.2kW
Milling unit
Milling motor power	3.5 kw x 2	3.5 Kw	3.5 Kw
Spindle speed	18000 rmp	18000 rpm	18000 rpm
Other data
Working table height	960 mm	960 mm	850mm
Total power	19.2 kw	20.8 kw	18.02kW
Voltage	380V/50Hz	380V/50Hz	380V
Air pressure	0.7-0.8Mpa	0.7 – 0.8 Mpa	0.7 – 0.8MPa
Netweight	3500kg	2600 kg	2440kg
Machine	5800x2840x2200mm	5800 x 2840 x 2200 mm	5470 x 2625 x 2200mm
