SIDED CNC DRILLING MACHINE – AUTOMATIC TOOL CHANGER
Quoc Duy is more than just a machine; it is a cost-effective solution built around three core pillars: stability, precision control, and high-efficiency output, engineered to turn every production run into predictable, uncompromising, and reliable profits. Choosing the Spire means bidding farewell to uncertainties and locking in a steady upward growth trajectory for your productivity.
Four Dimensions to Reshape the Standards of High-Efficiency Production
Feature 1
Feature 2
Feature 3
Feature 4
Heavy-Duty Rigid Structure, The Solid Foundation for High-Precision & Stable Machining of CNC Router!
Heavy-Duty Structure Combined With Aging Treatment Ensures the Machine Operates Stably at High Speeds

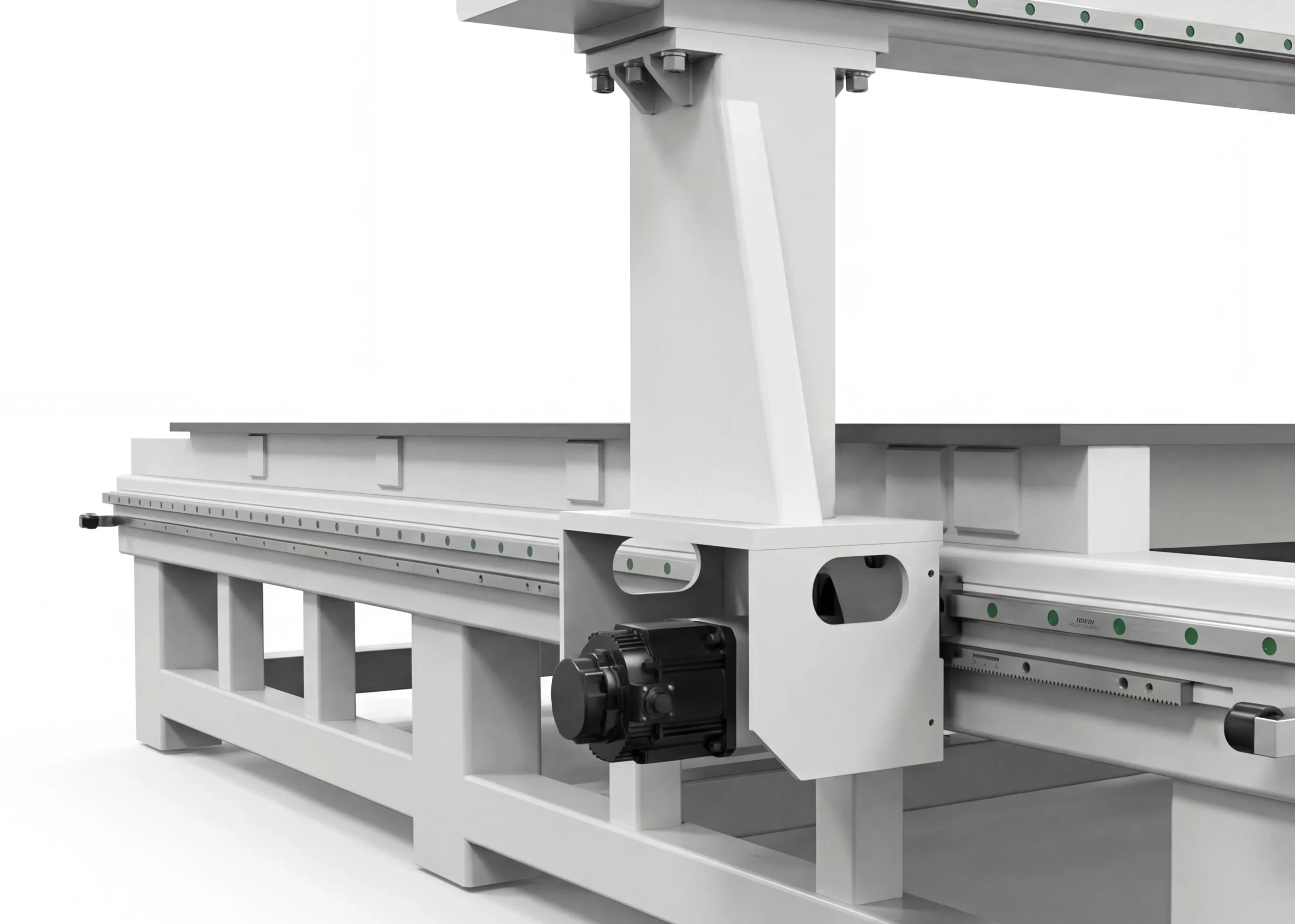

- The machine bed is welded from extra-thick high-strength square tubes in the sizes of 50*200mm/150*250mm, with additional reinforced internal support structures. The overall weight is increased by over 60% compared to standard CNC routers, and the surface is paved with thickened steel plates, which triples the overall rigidity of the machine and significantly reduces vibration during high-speed machining.
- After welding, multiple rounds of high-temperature annealing and vibratory stress relief are applied to fully eliminate internal stress and completely prevent welding deformation. This perfectly meets the high-speed machining requirements of the Spire CNC Router Machine, achieving high dynamic response and long-term precision stability.
- All core mounting surfaces (including linear guideway, rack, crossbeam connection, and worktable mounting surfaces) are precision-machined by large-scale five-axis gantry milling machines, providing accurate benchmarks for the assembly of key components. This ensures smooth high-speed operation of the equipment and a leap-forward improvement in overall precision.

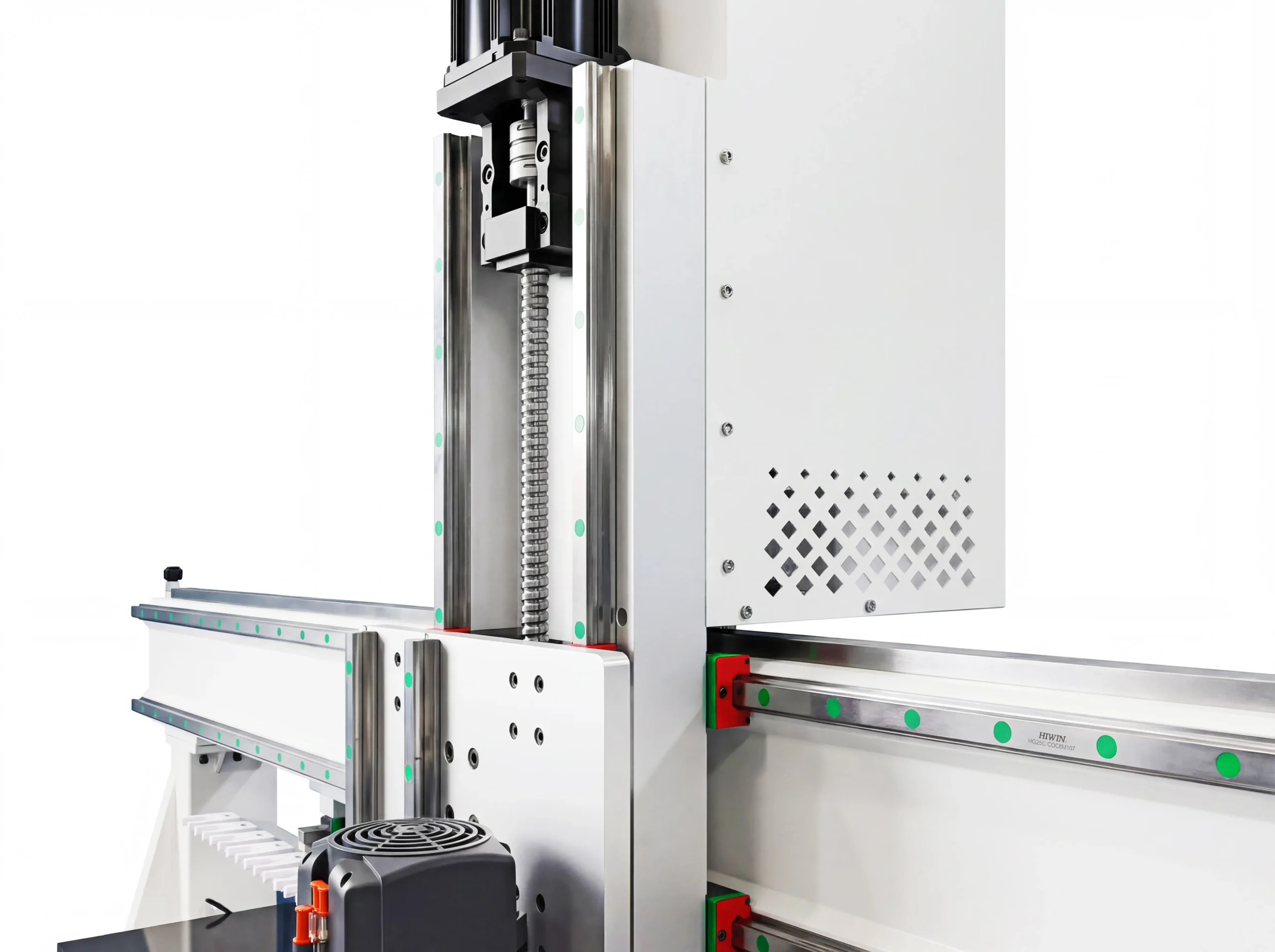

70mm Ultra-Thick Anodized Aluminum Z-Axis Mounting Plate
- The z-axis mounting plate features an ultra-thick structural design with an overall thickness of 70mm—more than 2.5 times the industry standard—boasting a flexural strength of no less than 280MPa. It significantly reduces base deformation during high-speed machine operation, ensuring stable cutting processes, smoother machined surfaces, and overall performance far exceeding industry standards.
- The surface undergoes hard anodizing treatment, which greatly enhances hardness and wear resistance—over 5 times higher than that of ordinary aluminum plates. It effectively resists long-term erosion from sawdust, dust, and other contaminants, is not prone to stain residue, offers long-lasting durability, and ensures stable long-term equipment operation.
- The ultra-thick aluminum mounting plate effectively suppresses spindle position deviation caused by base deformation, improving the consistency of machined dimensions by over 30% and significantly reducing the reject rate.

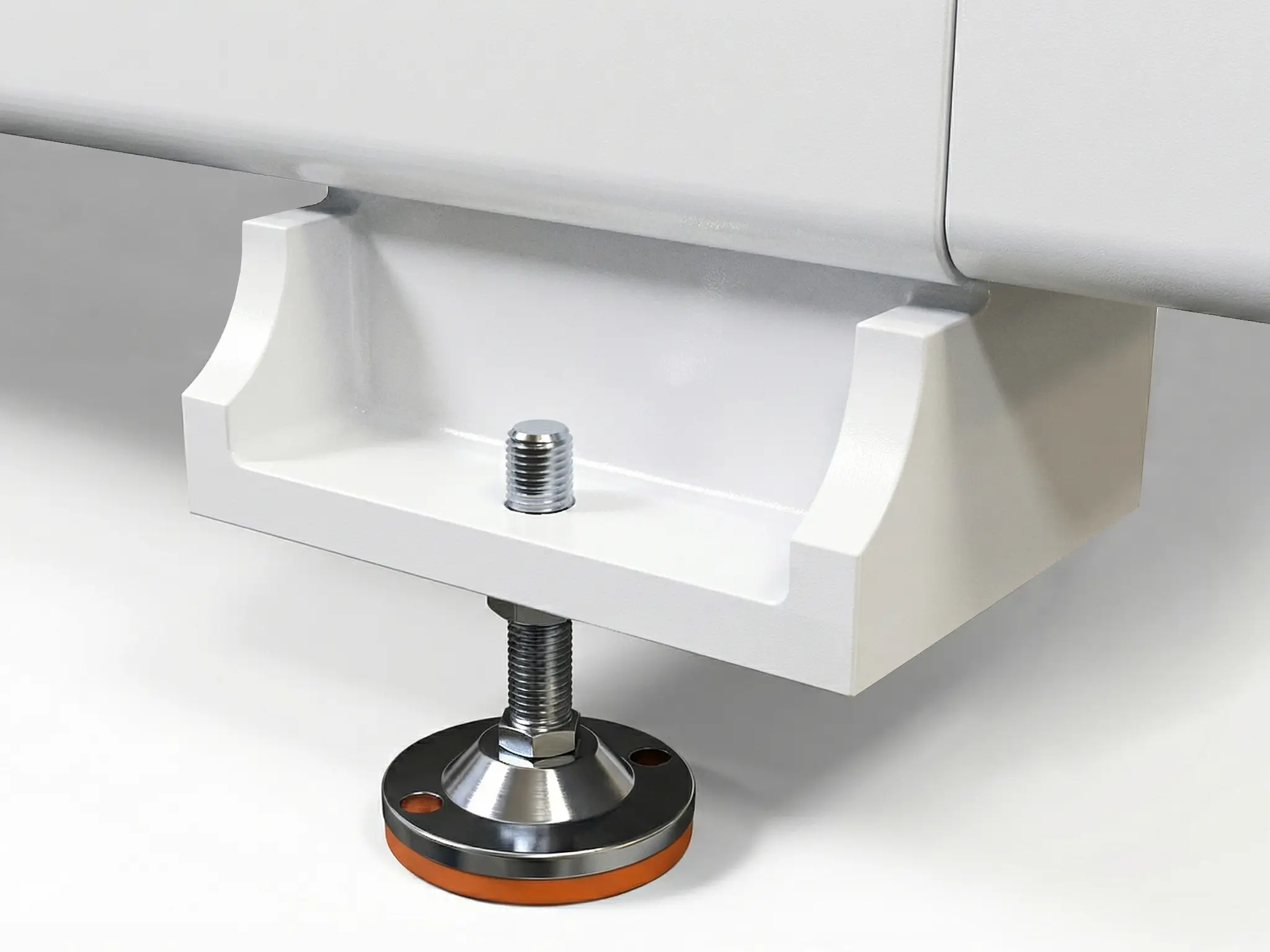

Adjustable Leveling Feet
- The ATC CNC router machine equipped with heavy-duty adjustable leveling feet that enable precise calibration of the CNC router machine’s horizontal level, effectively compensating for floor unevenness and laying a solid foundation for high-precision equipment operation.
- The leveling feet adopts a fine-thread adjustment structure with high-precision adjustment capability, controlling the overall horizontal error within 0.2mm/m. It adapts to various workshop floor conditions without the need for additional leveling, significantly reducing installation costs.
- The bottom of the leveling feet is fitted with polyurethane shock-absorbing pads, which effectively absorb vibration shocks generated by high-speed spindle rotation and machine operation, improving machine running stability by 75%.

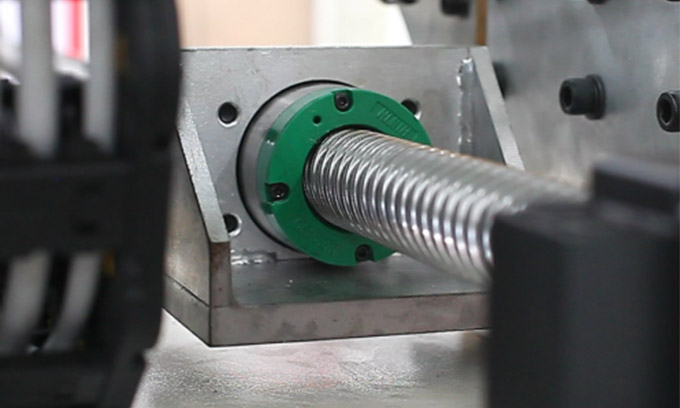

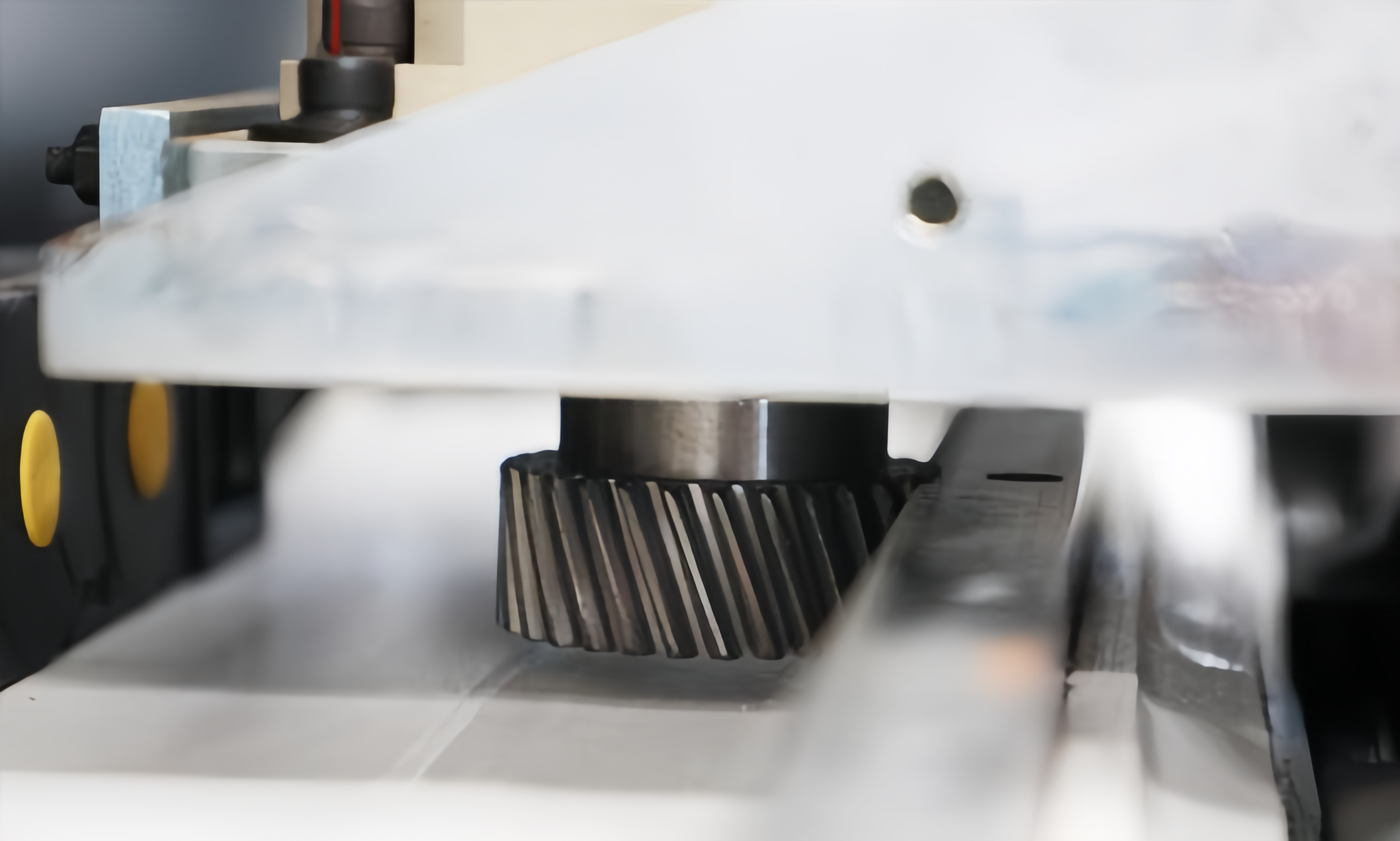

Top-Grade High-Precision Transmission Components, Empowering High Stability, Accuracy, Precision & Efficient of CNC Router!
Heavy-Duty Structure Combined With Aging Treatment Ensures the Machine Operates Stably at High Speeds
- The machine bed is welded from extra-thick high-strength square tubes in the sizes of 50*200mm/150*250mm, with additional reinforced internal support structures. The overall weight is increased by over 60% compared to standard CNC routers, and the surface is paved with thickened steel plates, which triples the overall rigidity of the machine and significantly reduces vibration during high-speed machining.
- After welding, multiple rounds of high-temperature annealing and vibratory stress relief are applied to fully eliminate internal stress and completely prevent welding deformation. This perfectly meets the high-speed machining requirements of the Spire CNC Router Machine, achieving high dynamic response and long-term precision stability.
- All core mounting surfaces (including linear guideway, rack, crossbeam connection, and worktable mounting surfaces) are precision-machined by large-scale five-axis gantry milling machines, providing accurate benchmarks for the assembly of key components. This ensures smooth high-speed operation of the equipment and a leap-forward improvement in overall precision.
Heavy-Duty Structure Combined With Aging Treatment Ensures the Machine Operates Stably at High Speeds
- The machine bed is welded from extra-thick high-strength square tubes in the sizes of 50*200mm/150*250mm, with additional reinforced internal support structures. The overall weight is increased by over 60% compared to standard CNC routers, and the surface is paved with thickened steel plates, which triples the overall rigidity of the machine and significantly reduces vibration during high-speed machining.
- After welding, multiple rounds of high-temperature annealing and vibratory stress relief are applied to fully eliminate internal stress and completely prevent welding deformation. This perfectly meets the high-speed machining requirements of the Spire CNC Router Machine, achieving high dynamic response and long-term precision stability.
- All core mounting surfaces (including linear guideway, rack, crossbeam connection, and worktable mounting surfaces) are precision-machined by large-scale five-axis gantry milling machines, providing accurate benchmarks for the assembly of key components. This ensures smooth high-speed operation of the equipment and a leap-forward improvement in overall precision.
6KW Powerful Drive, Enabling Effortless High-Speed & High-Precision Machining!

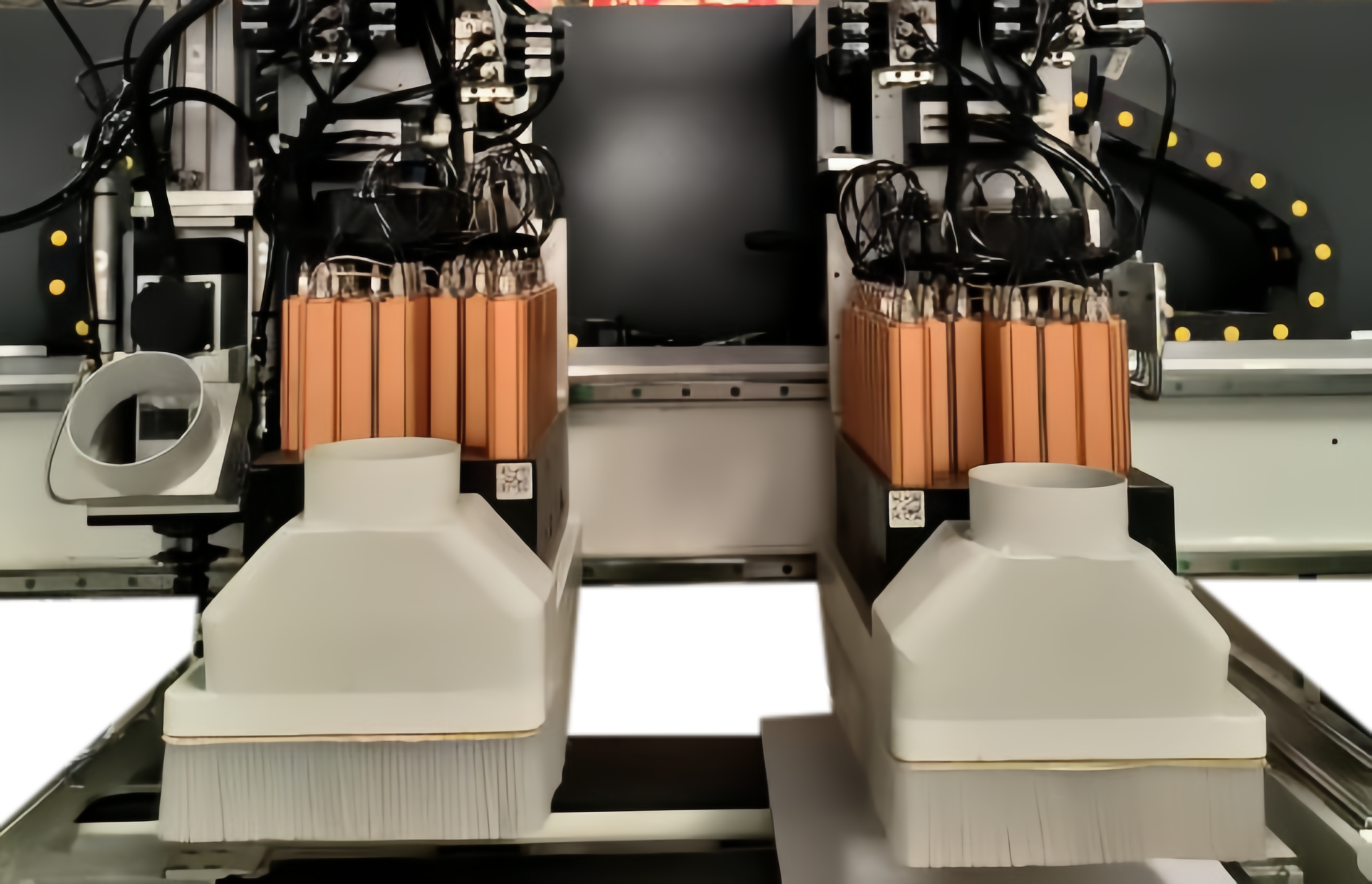

Double Precision Drilling Heads
- Equipped with two drilling units, the machine performs automatic drilling on all six sides of a panel in a single processing cycle, improving precision and production efficiency. It is widely used in the manufacturing of panel furniture, cabinets, beds, and engineered wood products. The machine features a dust extraction system and automatic workpiece clamping, ensuring stable and efficient operation. In addition, it supports barcode scanning for automatic program loading and is compatible with multiple data formats, helping optimize production workflows in modern furniture factories.
Powerful Drive, Precise Output, Reshaping New Standards for Stability & Precision of CNC Router!
Double Precision Drilling Heads
Equipped with two drilling units, the machine performs automatic drilling on all six sides of a panel in a single processing cycle, improving precision and production efficiency. It is widely used in the manufacturing of panel furniture, cabinets, beds, and engineered wood products. The machine features a dust extraction system and automatic workpiece clamping, ensuring stable and efficient operation. In addition, it supports barcode scanning for automatic program loading and is compatible with multiple data formats, helping optimize production workflows in modern furniture factories.
Professional CNC Software, Wireless Control, Empowering Higher Efficiency & Reliability in Precision Machining!
Double Precision Drilling Heads
Equipped with two drilling units, the machine performs automatic drilling on all six sides of a panel in a single processing cycle, improving precision and production efficiency. It is widely used in the manufacturing of panel furniture, cabinets, beds, and engineered wood products. The machine features a dust extraction system and automatic workpiece clamping, ensuring stable and efficient operation. In addition, it supports barcode scanning for automatic program loading and is compatible with multiple data formats, helping optimize production workflows in modern furniture factories.
Hassle-Free Tool Setting, Achieving a Leap in CNC Router Machining Efficiency and Precision!

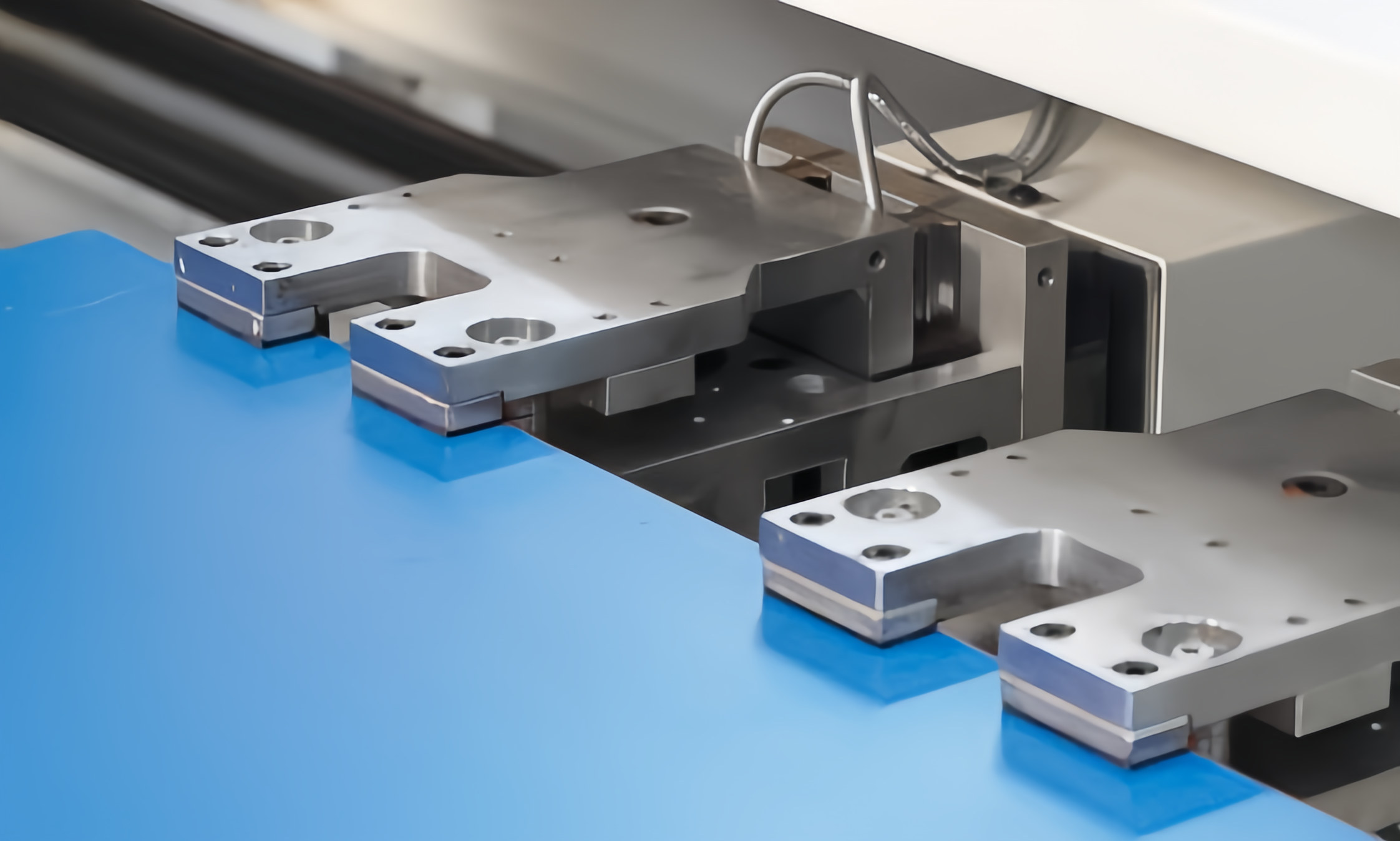

CNC Workpiece Clamping Unit
The CNC drilling machine workpiece clamping unit is an essential component used to secure the panel during machining, preventing movement while drilling or milling operations are performed. The clamping system typically operates using a pneumatic or automatic mechanism, ensuring firm holding and accurate positioning of the workpiece.
Hassle-Free Tool Setting, Achieving a Leap in CNC Router Machining Efficiency and Precision!
CNC Workpiece Clamping Unit
The CNC drilling machine workpiece clamping unit is an essential component used to secure the panel during machining, preventing movement while drilling or milling operations are performed. The clamping system typically operates using a pneumatic or automatic mechanism, ensuring firm holding and accurate positioning of the workpiece.
Video
Specifications
| Khoảng cách dao | 85 mm |

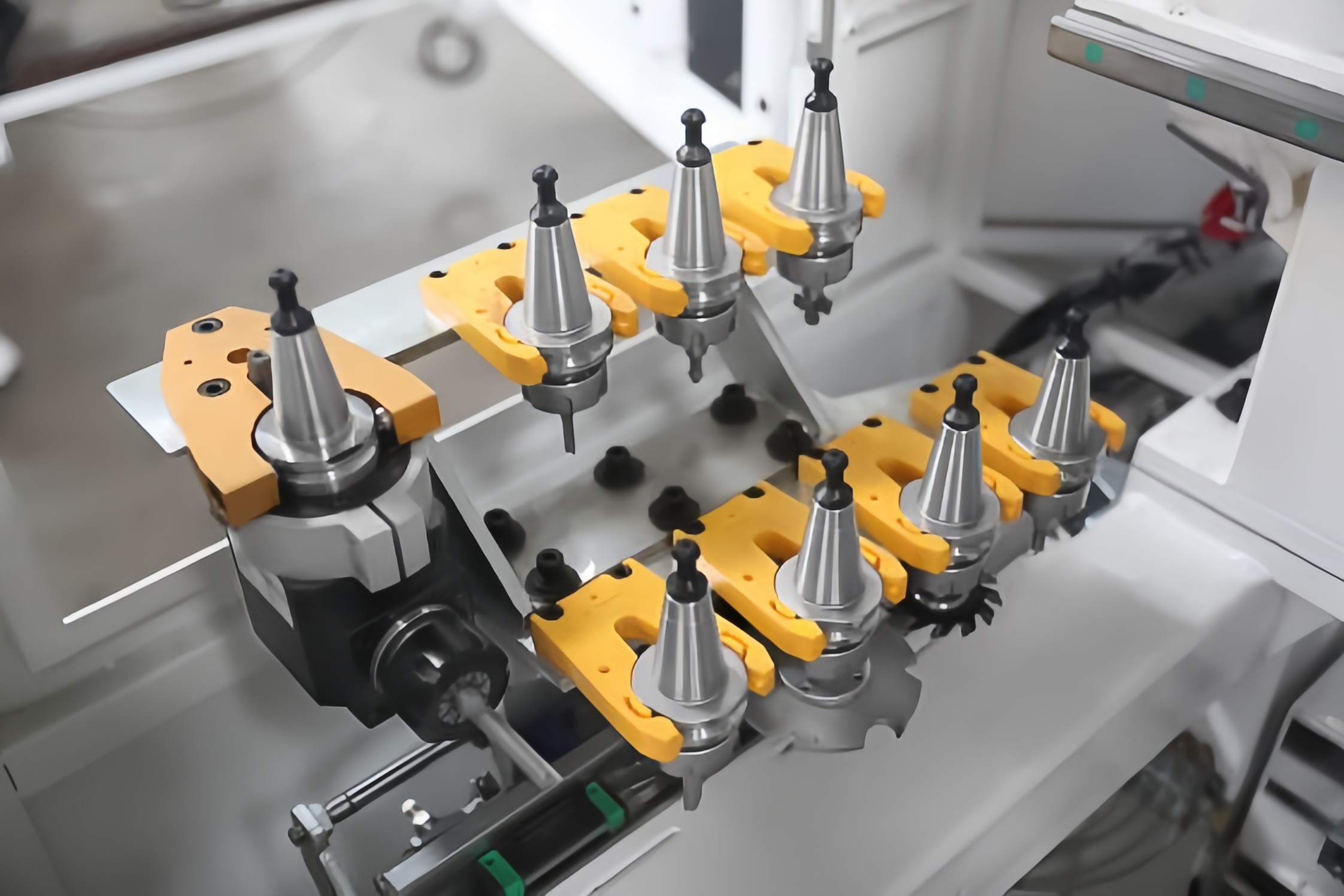

| Khay dao | Thay dao tự động |
| Công suất motor thay dao | 6 kW |
| Số lượng dao | 8 dao (7+1) |
| Kích thước ván nhỏ nhất (D x R) | 250 x 50 mm |
| Kích thước ván lớn nhất (D x R) | 1200 x 4200 mm |
| Độ dày ván gia công | 10-60 mm |
| Số lượng bề mặt xử lý | khoan 6 mặt + phay 2 mặt (trên và dưới) |
| Số cụm khoan | trên 2, dưới 1 |
| Số mũi khoan ngang (cụm khoan trên) | 8 mũi/cụm |
| Số mũi khoan dọc (cụm khoan trên) | 12 mũi/cụm |
| Số mũi khoan dọc (cụm khoan dưới) | 9 |
| Động cơ cụm khoan | 2.2kW x 3 – tốc độ 2800 vòng/phút |
| Động cơ trục phay router | 3.5kW (dưới) |
| Tốc độ quay trục phay router | 18000 vòng/phút |
| Tốc độ di chuyển trục X tối đa | 130m/phút |
| Tốc độ di chuyển trục Y tối đa | 85m/phút |
| Tốc độ di chuyển trục Z tối đa | 30m/phút |
| Tốc độ di chuyển trục U tối đa | 130m/phút |
| Tốc độ di chuyển trục V tối đa | 80m/phút |
| Tốc độ di chuyển trục W tối đa | 30m/phút |
| Tốc độ di chuyển trục A tối đa | 30m/phút |
| Tốc độ di chuyển trục Y2 tối đa | 85m/phút |
| Tốc độ di chuyển trục Z2 tối đa | 30m/phút |
| Động cơ servo trục X | 0.75 kW |
| Động cơ servo trục Y | 1 kW |
| Động cơ servo trục Z | 1 kW |
| Động cơ servo trục U | 0.75 kW |
| Động cơ servo trục V | 1 kW |
| Động cơ servo trục W | 1 kW |
| Động cơ servo trục A | 0.75 kW |
| Động cơ servo trục Y2 | 1 kW |
| Động cơ servo trục Z2 | 1 kW |
| Chiều cao bàn làm việc | 850mm |
| Tổng công suất | 24.72 kW |
| Điện áp | 380V 50Hz |
| Áp suất khí nén làm việc | 0.7 – 0.8Mpa |
| Lưu lượng hút chân không | 9400 m³/h |
| Trọng lượng máy | 2520 kg |
| Kích thước máy (D x R x C) | 5470 x 2857 x 2170mm |
